3.3.8 The solution of the problem of the collection of
Refunds: 0
Uploaded: 09.11.2016
Content: 3_3_8.png 44,77 kB
| 250 $ | the discount is | 15% |
| show all discounts | ||
| 1 $ | the discount is | 1% |
Product description

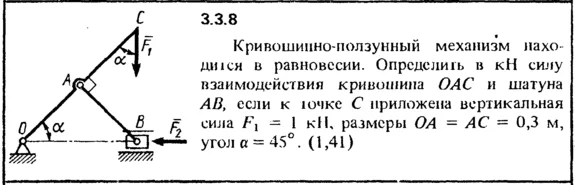

Slider-crank mechanism is in equilibrium. Determine the force in kN interaction CCA and crank rod AB when point C is applied to the vertical force F1 = 1 kN, the dimensions of OA = AC = 0.3 m, the angle α = 45 °.
Additional information
Immediately after payment you will receive a link to the zip file with the solution of the problem 3.3.8 (Chapter 1 - statics topic - 3.3: Balance of planar mechanisms under the plane system of forces) on the theoretical mechanics of collection of short tasks Kep OE YA.A . Viba, OP Grapis, JA Svetinysh and others. Publishing Moscow / Graduate School / 1989, 2009, 2012. The task is made in the format word (typed or hand-written decision in a Word) or in manuscript form in the format gif, packed to the archive zip (open on any PC) .After checking the solutions would be very grateful if you leave your positive feedback.
