Product description

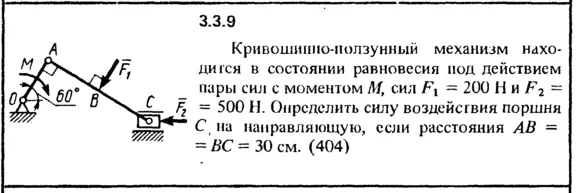

Slider-crank mechanism is in equilibrium under the action of a pair of forces with the moment M, the forces F1 = 200 N and F2 = 500 N. Determine the impact force of the piston with the guide, if the distance AB = BC = 30 cm.
Main features
- Content type File
- Content description 35,69 kB
- Added to the site 09.11.2016
Additional information
Immediately after payment you will receive a link to the zip file with the solution of the problem 3.3.9 (Chapter 1 - statics topic - 3.3: Balance of planar mechanisms under the plane system of forces) on the theoretical mechanics of collection of short tasks Kep OE YA.A . Viba, OP Grapis, JA Svetinysh and others. Publishing Moscow / Graduate School / 1989, 2009, 2012. The task is made in the format word (typed or hand-written decision in a Word) or in manuscript form in the format gif, packed to the archive zip (open on any PC) .After checking the solutions would be very grateful if you leave your positive feedback.
