Product description

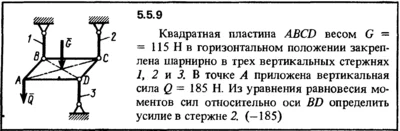

Square plate ABCD weight G = 115 N in a horizontal position is pivotally mounted in the three vertical bars 1, 2 and 3. At point A is applied vertical force Q = 185 N. From the equilibrium equation of moments of forces about the axis BD to determine the force in the rod 2.
Main features
- Content type File
- Content description 30,25 kB
- Added to the site 10.11.2016
Additional description
Immediately after payment you will receive a link to the zip file with the solution of the problem 5.5.9 (Chapter 1 - statics topic - 5.5: Equilibrium spatial system of parallel forces) on the theoretical mechanics of collection of short tasks Kep OE, JA Viba, OP Grapis, JA Svetinysh and others. Publishing Moscow / Graduate School / 1989, 2009, 2012. The task is made in the format word (typed or hand-written decision in a Word) or in manuscript form in the format gif, packed to the archive zip (open on any PC) .After checking the solutions would be very grateful if you leave your positive feedback.
