Product description

Access control systems symbols

Collection conditional graphic notation for the development of technical documentation on security objects (SBO), design access control systems.

Created by: catalogs western manufacturers of safety equipment. The English and Russian versions.

TAGs: access control, access control, video surveillance.

Format - DWG.
103 element.
100% in accordance with GOST.

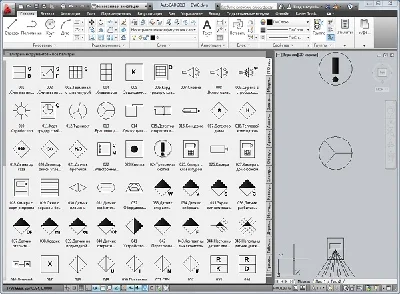

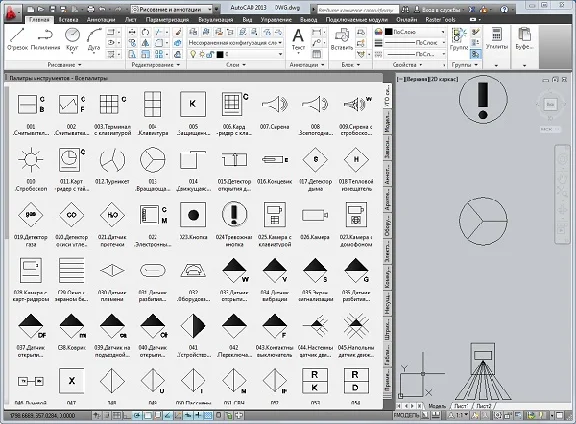

Elements for easy tool palette assembled in blocks of AutoCAD 2010.

The archive also contains the halyards, made as a standard drawing format, DWG, compatible with AutoCAD 2000-2016, Compass, ZWCAD, nanoCAD, BricsCAD etc.
