Product description

Airliner power plant - drawings in KOMPAS (.cdw). Airliner power plant - drawings in KOMPAS (.cdw). Airliner power plant - drawings in KOMPAS (.cdw). Airliner power plant - drawings in KOMPAS (.cdw). Airliner power plant - drawings in KOMPAS (.cdw).

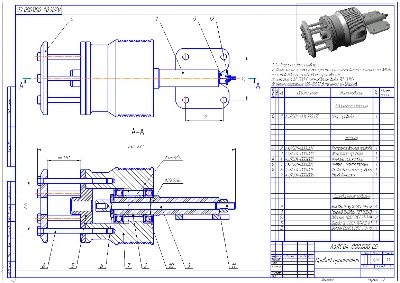

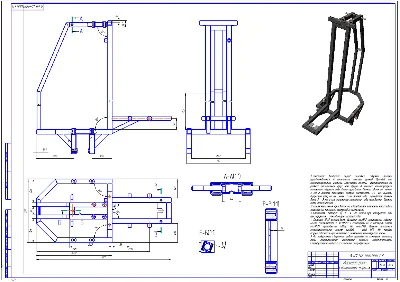

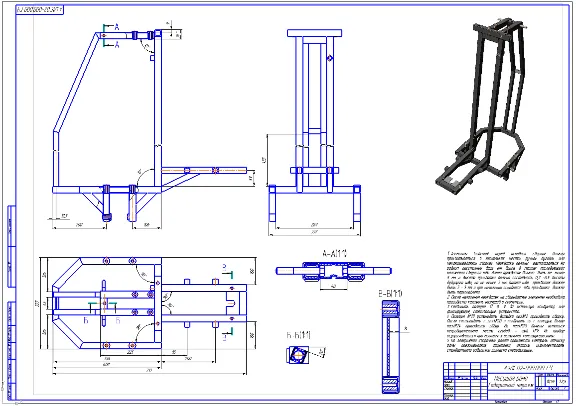

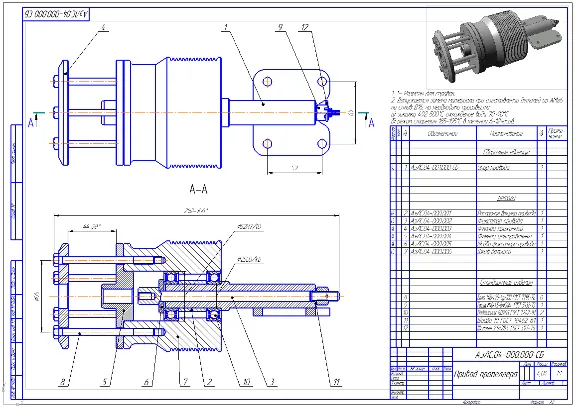

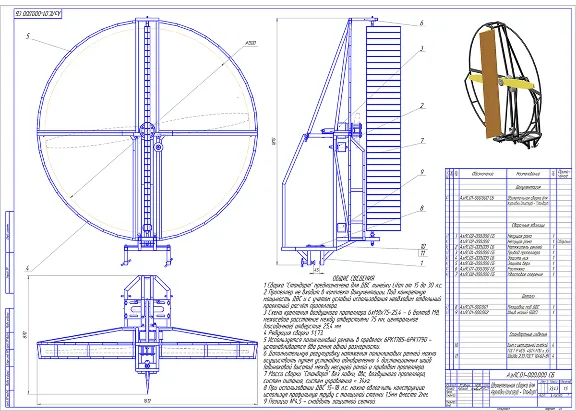

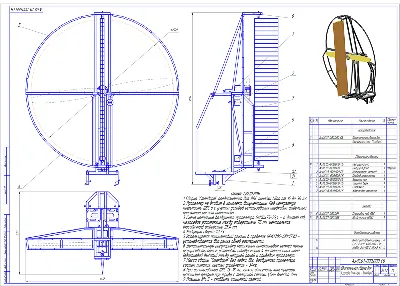

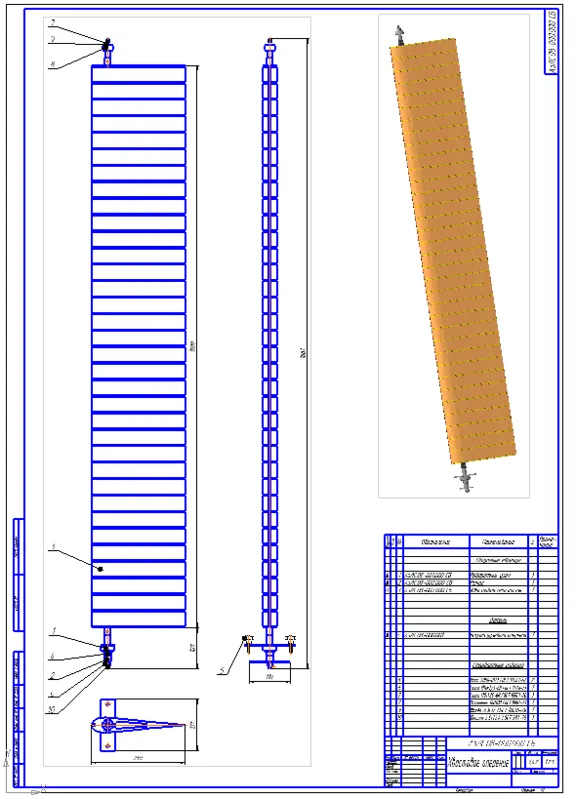

Drawings in the format (.cdw) for the independent manufacture of an attachment to a PVC boat - a power plant that turns it into an aero boat - a glider.
This amphibious apparatus is designed for confident travel on lakes, rivers and ponds at any time of the year. Not afraid of snow, ice.
Inflatable hull (PVC boat), traction screw are not included in the documentation package.

Additional information

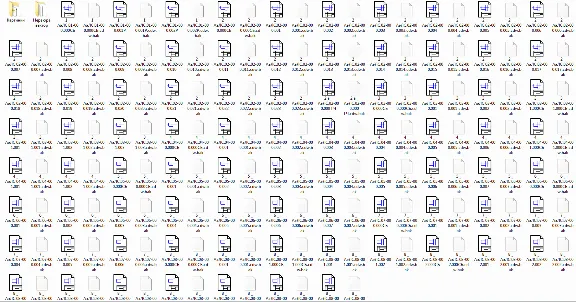

The documentation package "Propulsion Assembly for Airboats (Glider)" includes 83 drawings of which 8 assembly with specifications, 1 dimensional and 74 working drawings.

Application: KOMPAS-3D 16.0.0
File Type: KOMPAS-Drawing (.cdw)

Drawings in format (.cdw) viewing and editing is possible using the application: KOMPAS-3D 16.0.0 and higher.
The link (Yandex disk) for checking the reading of a file in the (.cdw) format is "https://yadi.sk/d/dTw4L3cW9_HBng"; by your KOMPAS application.

In accordance with the legislation of the Russian Federation and the international legislation of the World Convention on
copyright, this documentation package AELS.01-000.000 SAT: Propulsion system for Aerolodka (speedboat) - "Standard".
It is licensed for private use. Excludes its sale, newsletter, publication on forums, websites, social networks and other types
public distribution.
The right of public reproduction is excluded;
The right of distribution is excluded;
The right to public display is excluded;
The right to make known to the public is excluded.

For all questions regarding the expansion of the license and the additional use of the use of this material appeal to the owners: shuvik83@gmail.com
