ASB basic elements ES
Refunds: 0
Uploaded: 16.12.2014
Content: 41216172237443.rar 1854,14 kB
Product description

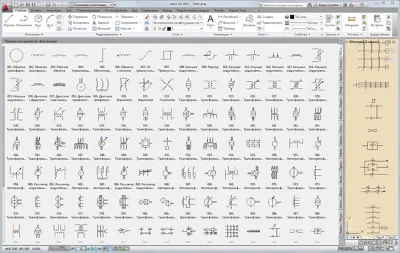

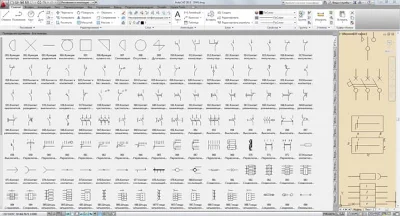

Collection conditional graphical symbols for expert design of electrical circuits.
Ingredients:
1. HUGO diodes and transistors - GOST 2.730-73 "Unified system for design documentation. Graphical symbols in diagrams. Semi-conductor devices. "
2. ASB choke coil transformers - GOST 2.723-68 "Unified system for design documentation. Graphical symbols in diagrams. Inductors, chokes, transformers, autotransformers and magnetic amplifiers. "
3. ASB contact connections - GOST 2.755-87 ESKD "Graphical symbols in electrical circuits. Device switching and contact connections. "
4. ASB electric cars - GOST 2.722-68 "Unified system for design documentation. Graphical symbols in diagrams. Electric machines ".
5. ASB arresters and fuses - GOST 2.727-68 "Unified system for design documentation. Graphical symbols in diagrams. Arresters, fuses. "
6. ASB resistors and capacitors - GOST 2.728-74 "Unified system for design documentation. Graphical symbols in diagrams. Resistors, capacitors. "
Format - DWG.
588 elements.
6 file archives.
100% in accordance with GOST.
The elements are assembled for easy tool palettes into thematic blocks AutoCAD 2010.
The archive also contains the halyards, made as a standard drawing format, DWG, compatible with AutoCAD 2004-2014, Compass, ZWCAD, nanoCAD, BricsCAD etc.
Note:
- For correct display of drawings, you must download and install the fonts engineering GOST GOST_A for AutoCAD and Windows.
Feedback
