Product description
Collection of, conditional graphic symbols used in the design of power supply systems.
Ingredients:
1. ASB to create AMR.
2. ASB appliances on DIN IEC.
3. ASB renewable energy equipment.
4. ASB transmission towers.
5. ASB power transformers.
6. ASB funds ECP.
7. ASB current-limiting equipment and UKRM.
8. ASB current and voltage transformers.

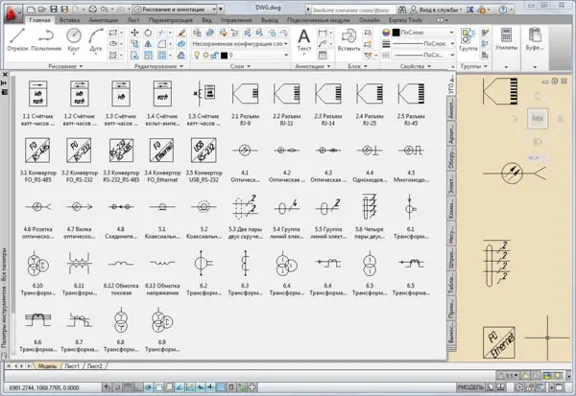

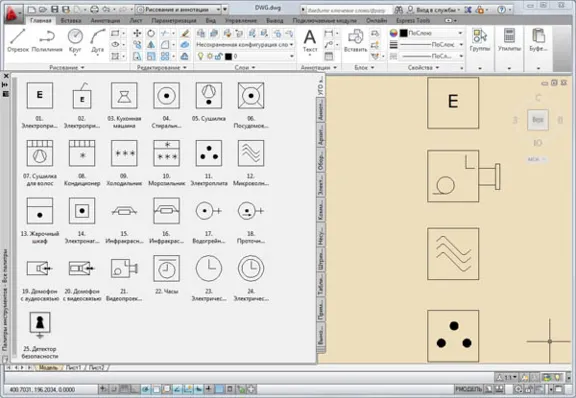

Conditional graphical notation for convenience, collected in the tool palette blocks AutoCAD.
The archive also contains the "ASB algorithms and logic" made as a standard drawing format AutoCAD2004 / 2010.
Note:
- For correct display of drawings, you must download and install the fonts engineering GOST GOST_A for AutoCAD and Windows.
Ingredients:
1. ASB to create AMR.
2. ASB appliances on DIN IEC.
3. ASB renewable energy equipment.
4. ASB transmission towers.
5. ASB power transformers.
6. ASB funds ECP.
7. ASB current-limiting equipment and UKRM.
8. ASB current and voltage transformers.
Conditional graphical notation for convenience, collected in the tool palette blocks AutoCAD.
The archive also contains the "ASB algorithms and logic" made as a standard drawing format AutoCAD2004 / 2010.
Note:
- For correct display of drawings, you must download and install the fonts engineering GOST GOST_A for AutoCAD and Windows.
Main features
- Content type File
- Content description 1235,91 kB
- Updated on the site 25.02.2014
