AUTOLISP: Building a size tolerance

The program is designed for setting the size tolerances in RUSSIAN versions of autocad 2013 ... 2017 and later.

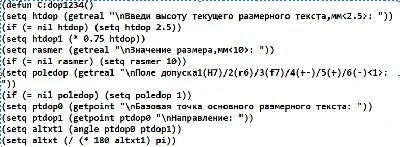

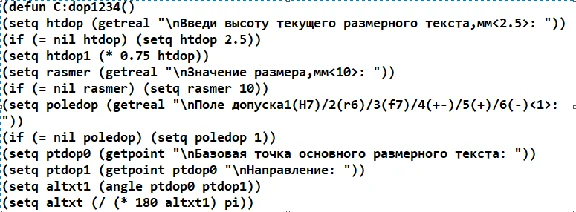

The program asks you to enter the height of the current dimension text, the size value, the type of tolerance field, the placement point of the tolerance, and the direction of drawing the tolerance.
As a result, the tolerance at the specified point is printed as text with the height of the current style.

Additional information

File dop1234.place the lsp with the program in a separate folder after the purchase, for example E:\LSP.
Go to the menu (Tools Настройка settingsFilesTrusted locations ) and add the path to this folder E:\LSP. Then go to the menu
(Service Aut AutuLispApplications) and in the autoload group, click the APPLICATIONS button and add the dop1234 file there.lsp for automatic loading.
To assign a separate button
go to Tools _ Customize _ Interface and click the "Create a new command" button. Enter the name of the command and its description, such as "building a tolerance".
Enter the name of the _ dop1234 function in the macro line.
The new build tolerance command should appear in the list at the bottom left.
Drag it with the right mouse button to the desired panel in the "tree" of the neighboring window at the top and click OK.
