The program is designed to build axes in RUSSIAN versions of autocad 2013 ... 2017 and later.
First, specify the center of the axes on request, and then enter the diameter of the axes in millimeters on request in the command line. As a result, at the specified point, two perpendicular segments of straight lines are constructed with a length equal to the entered diameter of the axes.
First, specify the center of the axes on request, and then enter the diameter of the axes in millimeters on request in the command line. As a result, at the specified point, two perpendicular segments of straight lines are constructed with a length equal to the entered diameter of the axes.
Main features
- Content type File
- Content description 0,41 kB
- Added to the site 10.02.2020
Additional description

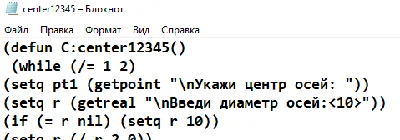

Center12345 file.place the lsp with the program in a separate folder after the purchase, for example E:\LSP.
Go to the menu (Tools Настройка settingsFilesTrusted locations ) and add the path to this folder E:\LSP. Then go to the menu
(Service Aut AutuLispApplications) and in the autoload group, click the APPLICATIONS button and add the center12345 file there.lsp for automatic loading.
To assign a separate button
go to Tools _ Customize _ Interface and click the "Create a new command" button. Enter the name of the command and its description, such as "AXES".
Enter the name of the _ center12345 function in the macro line.
The new AXIS command should appear in the list at the bottom left.
Drag it with the right mouse button to the desired panel in the "tree" of the neighboring window at the top and click OK.
Go to the menu (Tools Настройка settingsFilesTrusted locations ) and add the path to this folder E:\LSP. Then go to the menu
(Service Aut AutuLispApplications) and in the autoload group, click the APPLICATIONS button and add the center12345 file there.lsp for automatic loading.
To assign a separate button
go to Tools _ Customize _ Interface and click the "Create a new command" button. Enter the name of the command and its description, such as "AXES".
Enter the name of the _ center12345 function in the macro line.
The new AXIS command should appear in the list at the bottom left.
Drag it with the right mouse button to the desired panel in the "tree" of the neighboring window at the top and click OK.
