Bypass valve MCH00.01.00.00 solidworks
Uploaded:
23.01.2022
Content: 01.rar 2696,91 kB
Content: 01.rar 2696,91 kB
Product description

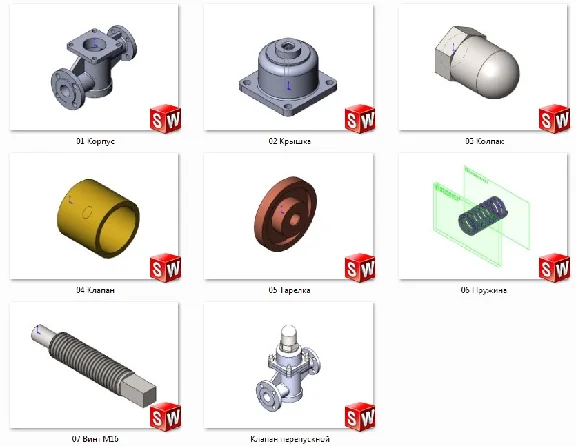

Bypass valve MCh00.01.00.00 3d model

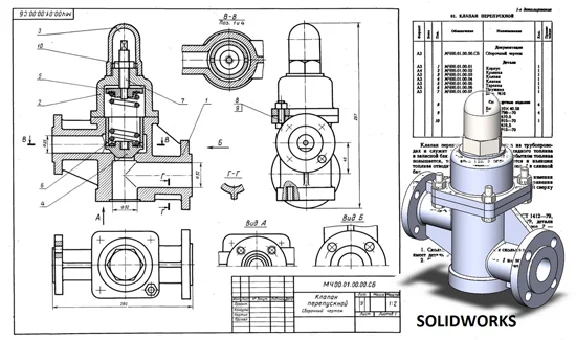

Bypass valve MCH00.01.00.00 3d SOLIDWORKS
The bypass valve is installed on the pipelines and serves to bypass excess liquid fuel into the reserve tank. If the pressure rises due to excess fuel, the valve pos.4 rises and the excess fuel is discharged through the hole in part pos.1 into the drain tank.
The operation of the valve is regulated by the screw pos.7, changing the degree of compression of the spring pos.6. To protect the control system from possible damage, a cap pos.3 is installed on top.

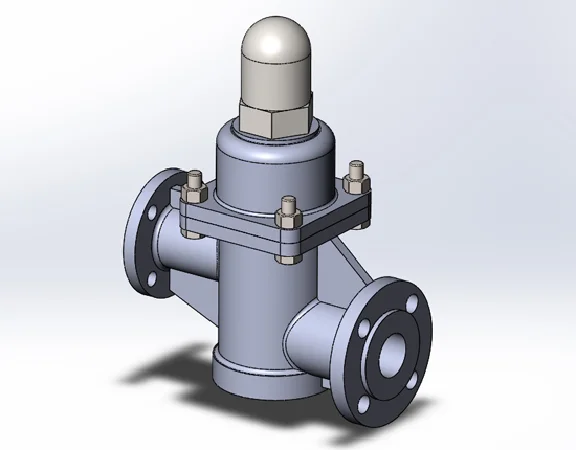

3D model (shown in screenshots) made by SOLIDWORKS 2016.
It is also possible to open and view 3D models made in SOLIDWORKS in the SolidWorks eDrawings Viewer.
