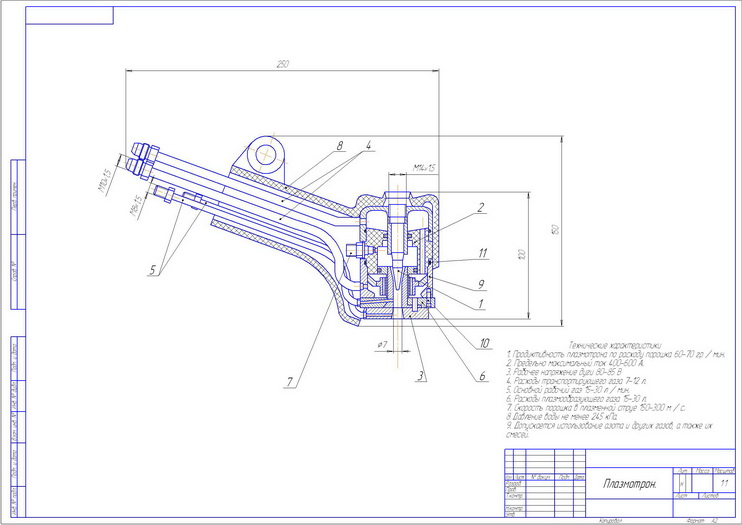

Drawing of plasmatron for spraying (general view)
Refunds: 0
Uploaded: 10.06.2015
Content: plazmotron_dlya_napyleniya.zip 131,22 kB
30 $ | the discount is | 20% |
10 $ | the discount is | 10% |
Product description
Drawing of plasma torch for spraying (general view) specification
Specifications
1. The productivity of the plasmatron in terms of powder consumption is 60-70 g / min.
2. The maximum maximum current is 400-600 A.
3. Working voltage of the arc 80-85 V
4. Consumption of transporting gas 7-12 liters.
5. The main working gas is 15-30 l / min.
6. Consumption of plasma-forming gas 15-30 liters.
7. The speed of the powder in the plasma jet is 150-300 m / s.
8 Water pressure not less than 245 kPa.
9. It is allowed to use nitrogen and other gases, as well as their
mixtures.
Additional information
Drawing is made in the program of Compass, is stored in the format - cdw+dxf (to open the file in AutoCAD and Compass)
