Choice of a hydroturbine for HPP of NIU MPEI Option 8
Refunds: 0
Uploaded: 11.08.2018
Content: Вариант 8.rar 331,83 kB
Adward
seller information
Seller will give you a gift certificate in the amount of
Product description
Course work on the topic "Choice of a hydroturbine for HPPs" on the subject "Hydraulic machines" for NIU "Moscow Power Engineering Institute"
For a hydroelectric power plant with a design head Hp = 36.2 m, a reactive turbine is selected (the system, type, impeller diameter, speed and allowable depth) are determined for a nominal power N = 65,000 kW and a suction height at a design head of approximately Hs = -8 , 0m.
For the selected turbine, the performance characteristics of the power dependence are constructed: efficiency? (N), the suction height Hs (N) and the flow rate Q (N) for four different heads and on their basis the operational power-output characteristic is constructed.

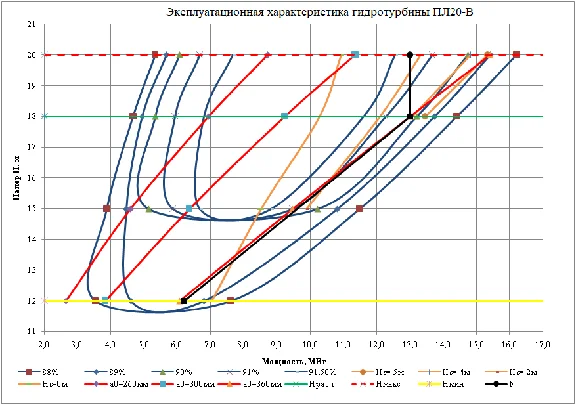

On the operational characteristic, the isolines of efficiency, suction heights, opening of the guide apparatus, the angle of installation of the blades and the power limiting line for the generator and turbine are plotted.
A dimensional sketch of the installation of the turbine RO-45 was developed and the mark of the impeller was selected.
Explanatory note 20p. in Word, the drawing "Outline sketch of installation of the turbine RO-45" in AdobeAcrobatReader.
Content
1 Selection of the system and type of hydraulic turbine, determination of its main parameters
2. Calculation and construction of performance characteristics
3. Construction of performance characteristics
4. Development of the installation scheme
Literature
