Connection with fasteners. Option 1
Uploaded:
26.01.2022
Content: 01.rar 138,64 kB
Content: 01.rar 138,64 kB
Product description
Connection with fasteners. Option 1

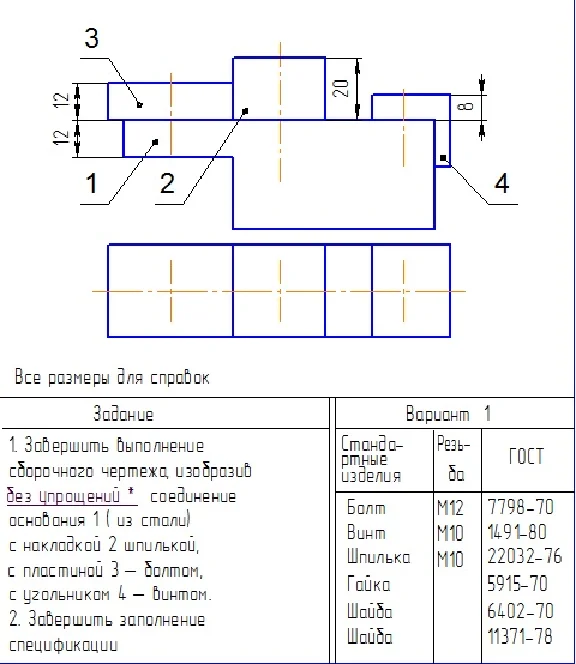

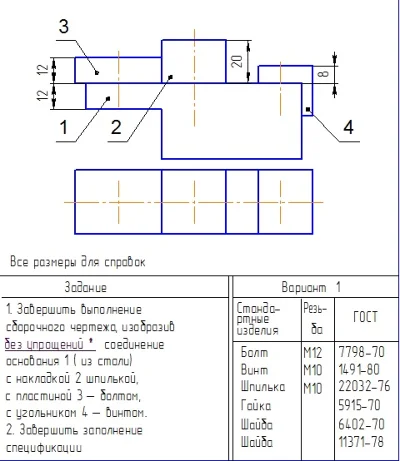

1. Complete the assembly drawing, depicting without simplification * the connection of the base 1 (made of steel) with the overlay 2 with a pin, with the plate 3 - with a bolt, with the square 4 - with a screw. 2. Complete the specification.

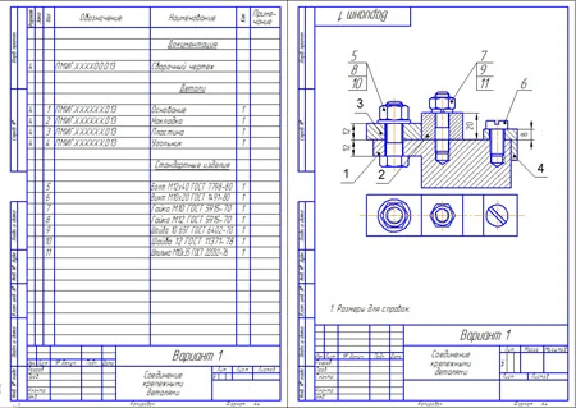

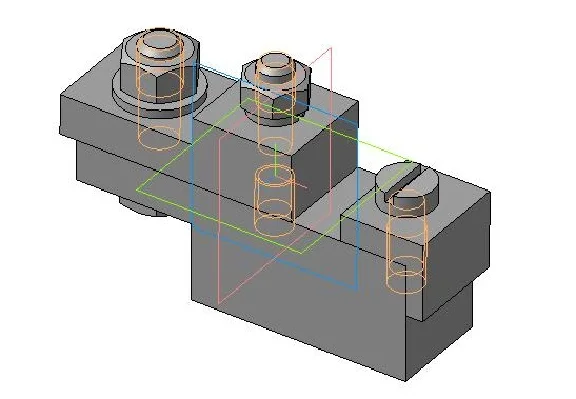

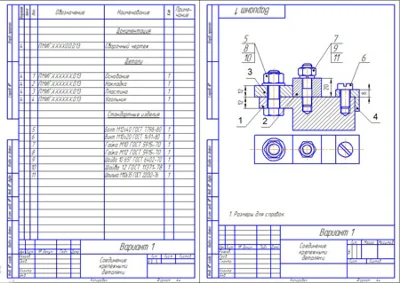

The 3d model and the assembly drawing specification (all shown in the screenshots) are made in the 3D v13 compass, it is possible to open it in 14,15,16,17,18,19,20 and higher versions of the compass.
Please write to L/S for all questions. I will answer and help.
