The composition of the course project includes two sheets of A1 format. The theme of the course work "Residential building with an attic."
1. On the first sheet: Floor plan of the first and second floors, building facades, section, explication of premises, landscaping scheme, wind rose (for the city of Smolensk), specification of filling elements for openings, sheet of doorways.

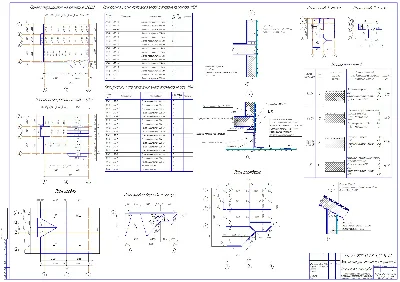

2. On the second sheet: Floor plans and specifications for them, nodes, grill plan, floor explication, floor plan, roof plan.
1. On the first sheet: Floor plan of the first and second floors, building facades, section, explication of premises, landscaping scheme, wind rose (for the city of Smolensk), specification of filling elements for openings, sheet of doorways.
2. On the second sheet: Floor plans and specifications for them, nodes, grill plan, floor explication, floor plan, roof plan.
Main features
- Content type File
- Content description 179,51 kB
- Added to the site 26.02.2020
Images
Additional information
Drawings added to RAR archive, drawing format-cdw (Compass V-13)
