Detached two-storey residential house (cottage) 455 m2

The seller is blocked and sales of the product are suspended

\u003cb\u003eBuy a course project on the theme: Detached two-storey residential house (cottage) 455 m2 - under construction in the city of Astrakhan\u003c/b\u003e

\u003ci\u003e- Graphic material is presented in the format of AutoCAD DWG 2007.
- Text material in the format of Word doc.\u003c/i\u003e

\u003cb\u003eThe content of the archive (course project - Detached two-storey house cottage)\u003c/b\u003e
1) of the Free
- Demonstration of sheets of drawings in compressed form as bitmaps with a water mark 512 * 724 ... 1024 * 724;
- The introduction and initial data from the explanatory note to the term proctitis;
2) Access by \u003ci\u003epassword (contained in a file obtained after payment)\u003c/i\u003e
- The graphical part of the 16 A3 sheets, 1 sheet of A2 format DWG 2007;
- 3D model in ArchiCAD 10 format;
- The text part - explanatory note.

\u003cb\u003eThe contents of the text part of the course project\u003c/b\u003e
- Introduction
- 1. Baseline
- 2. The general plan
--- 2.1. Technical - economic indicators
- 3. volumetric - planning solution
- 4. Constructive solution
--- 4.1. Bases and foundations
--- 4.2. Walls
--- 4.3. Overlap
--- 4.4. Top
--- 4.5. Septa
--- 4.6. Ladder
---- Calculation of the staircase:
--- 4.7. Windows
--- 4.10.Prochie design.
- 5. Heat engineering calculation of the outer wall
- 6. Exterior and interior
- 7. Brief information on the engineering - technical equipment
- 8. Environment
- 9. techno - economic indicators
- List of used literature

\u003cb\u003eThe content of the graphic part of the course project\u003c/b\u003e

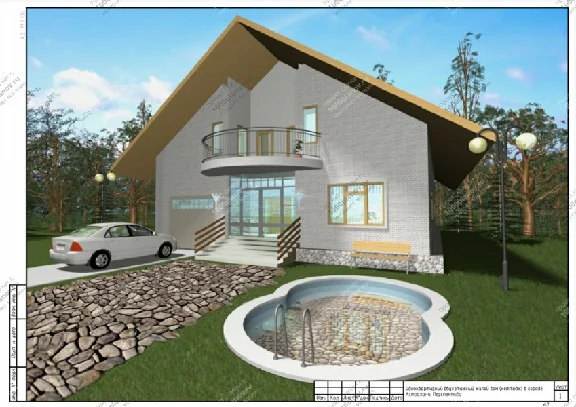

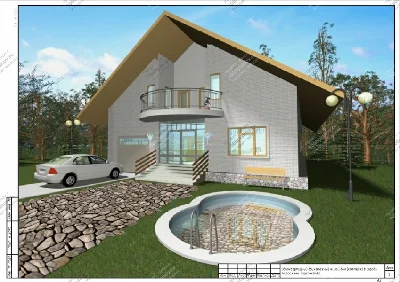

1. Perspective;
2. The general plan m 1: 500 Situational scheme;

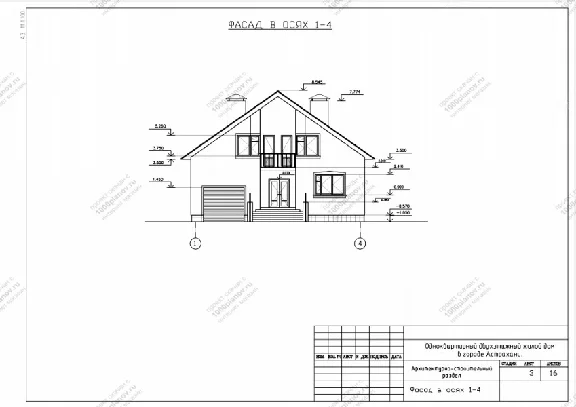

3. Facade of the axes 1-4;
4. The facade of the axes A-E;
5. Foundation plan m 1: 100, section A-A, B-B, B-B m 1:50;
6. Plan the overlap at Elevation 0.000;
7. Plan of 1st floor 1: 100;
8. The plan jumpers at Elevation 3.408;
9. Plan floors at elevation 3,000;
10. Plan of the 2nd floor of 1: 100;
11. Plan pstropilnoy of 1: 100;
12. Plan of roof 1: 100;

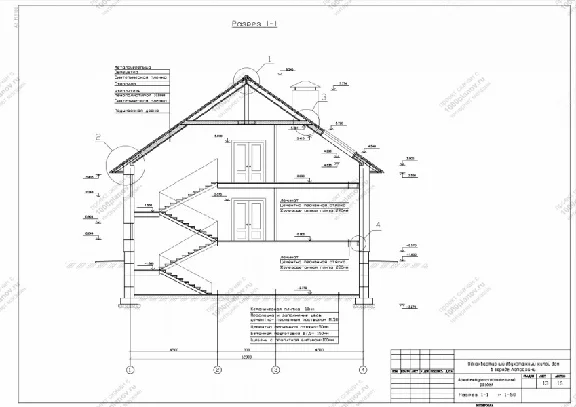

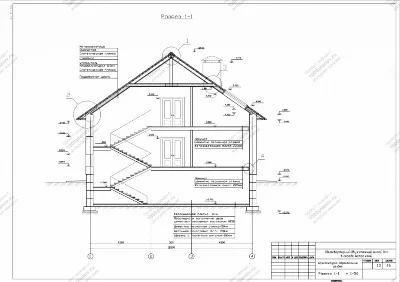

13. Section 1-1 1: 100 (Section 1-1 m 1-50);
14. Section 2-2 1: 100;
15. The cross section of the wall m 1:50;
16. Parts of the roof 1,2,3 m 1:50 nodes monolithic UCH-Ka M1: 20;
- 3D model in ArchiCAD 10 format;
