Determine what force T should be applied to the cable t
Sold <10
The sale of this product is suspended.
Product description

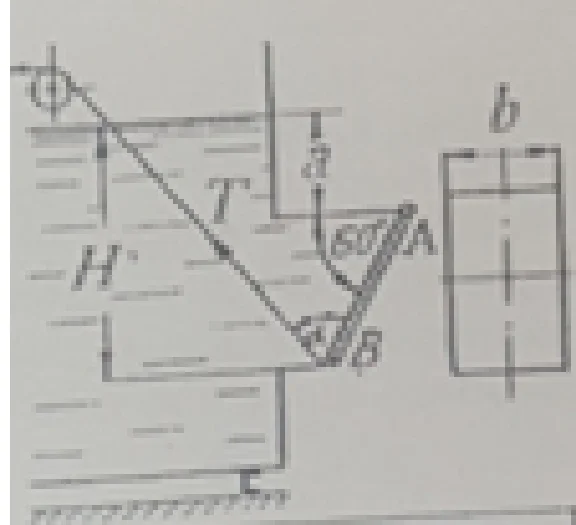

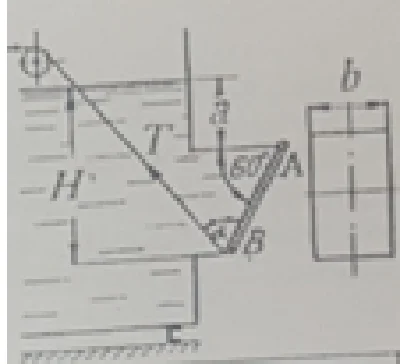

Determine what force T should be applied to the cable to open a rectangular shield AB of width b if the shutter holds the water pressure equal to H, and the water level above the top edge of the shutter is a. The angle of inclination of the shutter is 600. The shutter can rotate around hinge A. The cable is attached to the shield at an angle α.
Given: b = 300mm = 0.3m; H = 1.2m; a = 0.6m; α = 600.
Buy and download a ready-made solution.
Product Content: task solution in Word format.
Given: b = 300mm = 0.3m; H = 1.2m; a = 0.6m; α = 600.
Buy and download a ready-made solution.
Product Content: task solution in Word format.
Main features
- Content type File
- Content description 203,22 kB
- Updated on the site 03.09.2019
