Dievsky V.A. - Solution of problem C5 variant 14(C5-14)
Product description

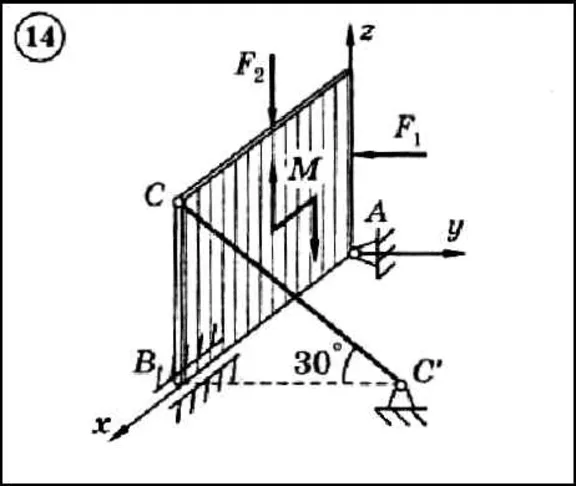

For the body represented on the diagram, determine the reactions of the supports. The body represents a homogeneous rectangular plate weighing G = 12 kN, measuring | AB | = 6m and | BC | = 2m. The plate is fixed by means of three supports: an articulated support (spherical hinge) at point A, a bearing support at point B and a support rod at point C. A pair of forces with a torque of M = 10 kNm acts on the plate and in the middle of the corresponding sides - Horizontal force F1 = 6 kN and vertical force F2 = 8 kN.
Main features
- Content type File
- Content description 206,55 kB
- Updated on the site 12.04.2021
Additional description
Reviews
No reviews yet
