Product description
D7-20 (Task 1) Dievsky

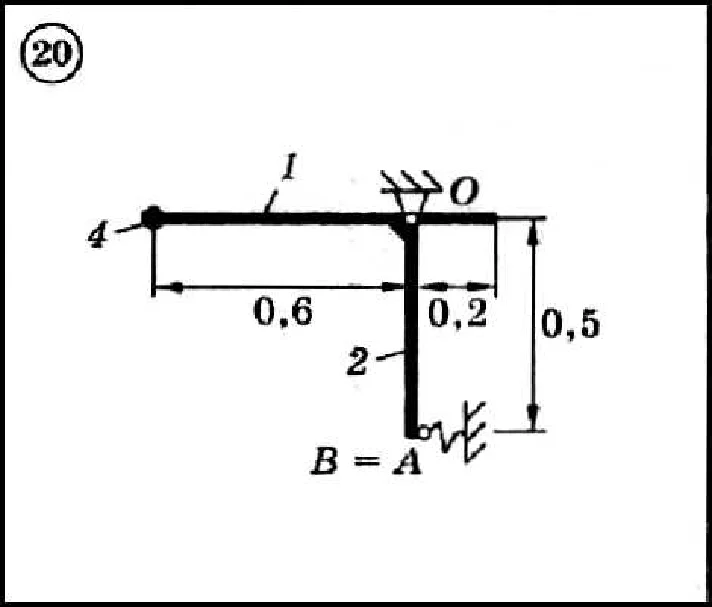

For the mechanical system shown on the diagram, determine the natural oscillation frequency. The mechanical system shown in the diagram at the equilibrium position can make free oscillations by rotating around the horizontal axis z passing through the fixed point O. The system consists of rigidly fastened together bodies: thin homogeneous rods 1 and 2 or a homogeneous plate 3 and a point load 4. The mass of 1 m of the rod length is 25 kg, the mass of 1 m2 of the plate area is 50 kg, the weight of the point load is 20 kg. The elastic elements have a stiffness coefficient c = 10 kN / m. The dimensions of the system parts are indicated in meters.
For the mechanical system shown on the diagram, determine the natural oscillation frequency. The mechanical system shown in the diagram at the equilibrium position can make free oscillations by rotating around the horizontal axis z passing through the fixed point O. The system consists of rigidly fastened together bodies: thin homogeneous rods 1 and 2 or a homogeneous plate 3 and a point load 4. The mass of 1 m of the rod length is 25 kg, the mass of 1 m2 of the plate area is 50 kg, the weight of the point load is 20 kg. The elastic elements have a stiffness coefficient c = 10 kN / m. The dimensions of the system parts are indicated in meters.
Main features
- Content type File
- Content description 130,5 kB
- Added to the site 28.12.2017
Reviews
No reviews yet
0 000 X
There are no such quantities in stock
By clicking the button, you agree to
terms for buyers
Dievsky V.A - Solution of problem D7 variant 20 task 1
