Diploma. tank welding technology volume 2000m3

The sale of this product is suspended.

Try to search similar items from other sellers.

Sold: 9 last one 16.06.2021
Refunds: 1

Uploaded: 13.05.2018
Content: 051_rezervuar 2000м3.zip 10516,34 kB

Product description

Diploma. tank welding technology volume 2000m3


The formulation of project tasks
Theoretical analysis
2.1 Characteristics of product design
2.2 Technical requirements for the manufacture of products
2.2.1 Technical requirements for basic materials
2.2.2 Technical requirements for welding consumables
2.2.3 Technical requirements to procurement operations
2.2.4 Technical requirements for assembly operations
2.2.5 Technical requirements for welding operations
2.2.6 Technical requirements for weld inspection methods and quality
Engineering calculations
3.1 Material of construction
3.2 Welding process
3.3 Welding and auxiliary materials
3.4 welding modes
Technology section
4.1 Analysis of the baseline and proposed processes
4.2 Rationale for harvesting operations
4.3 of assembly
4.3.1 Preparing the mounting location
4.3.2 Layout base
4.3.3 Installation of the bottom okraek
4.3.4 Installation of the bottom
4.3.5Razmetka bottom
4.3.6 Installation of the central rack
4.3.7 Raising the walls of the roll in a vertical position
4.3.8 Expanding the roll walls and installation of cover panels
4.3.9 Shaping the edges of the cloth wall
4.3.10 Short field joint wall
4.3.11 Installation of stairs, platforms and railings on the roof
4.4 Hydraulic test PBC-2000
4.5 Selection of welding equipment
4.6 Selection of equipment for finishing, editing
4.7 Selection of lifting and handling equipment
4.8 Quality control of welded joints
The design section
The spatial arrangement of the production process
6.1 Planning the installation site
6.2 Determination of the amount of equipment and workers
The organizational part
7.1 Measures to improve the organization of work and management of the production process
7.2 Organisation of work teams for the assembly and welding of the RVS-2000
7.3 Requirements for the certification of personnel, equipment and materials
Health and Safety
8.1 Characteristics of the research object
8.2 Identification and analysis of occupational hazards
8.3 Provide the required lighting in the workplace (section)
8.4 Ensure optimal microclimate parameters workplace (section)
8.5 Development of methods of protection against harmful and dangerous factors
8.6 Psychophysiological features of human behavior with his participation in the production of works in the workplace (section)
8.7 Development of measures for the prevention and elimination of consequences of emergency situations in peacetime and wartime
8.8 Maintenance of ecological safety and environmental protection
8.9 Conclusion on the list of health and safety
Economic section
9.1 Description of the product and the welding process
9.1.1 Purpose and weldment design
9.1.2 Brief description of the welding process
9.1.3 Structure of the production of the welding process
9.1.4 Standards of industrial welding process
9.1.5 Structure of the equipment and working
9.1.6 Description of installation site
9.2 Calculation of construction cost
List of sources used

Additional information

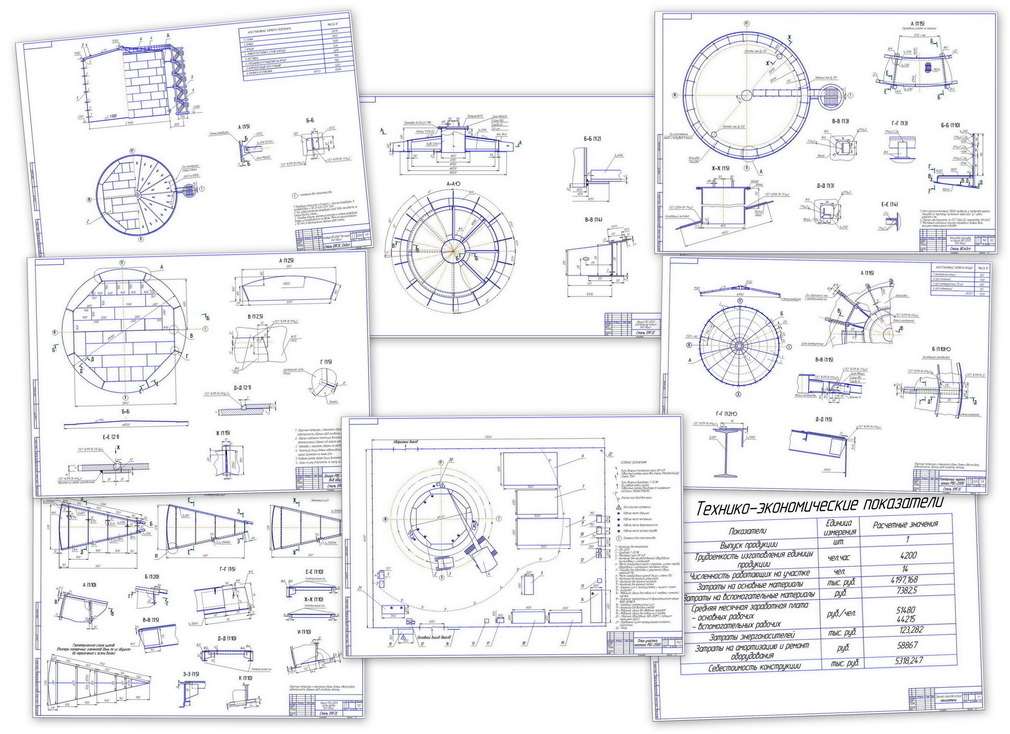

Drawings made in compass
