Product description
Overall dimensions: 2036h856h120 (parametric)
Short description:

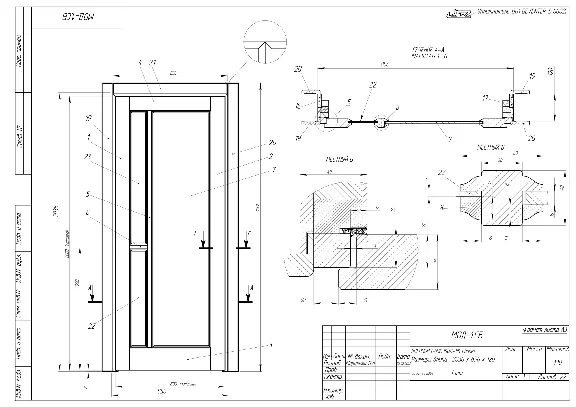

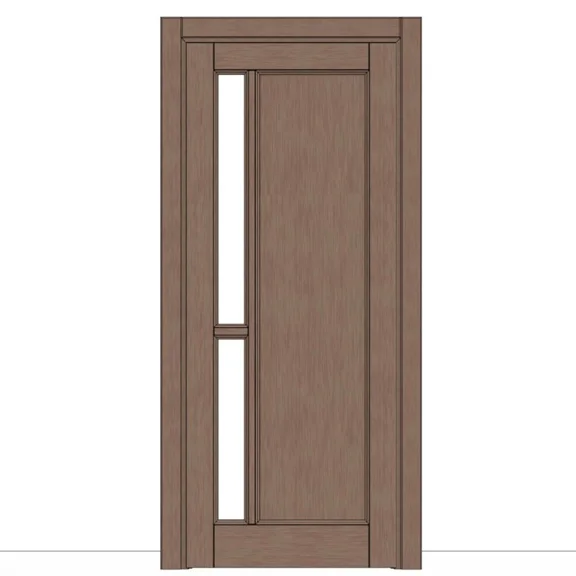

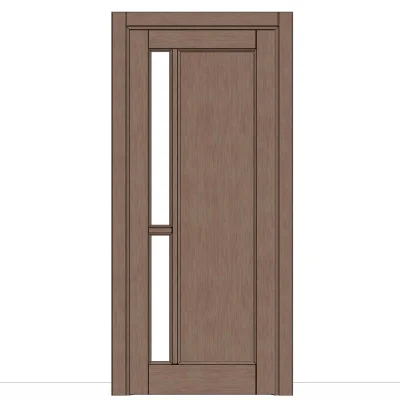

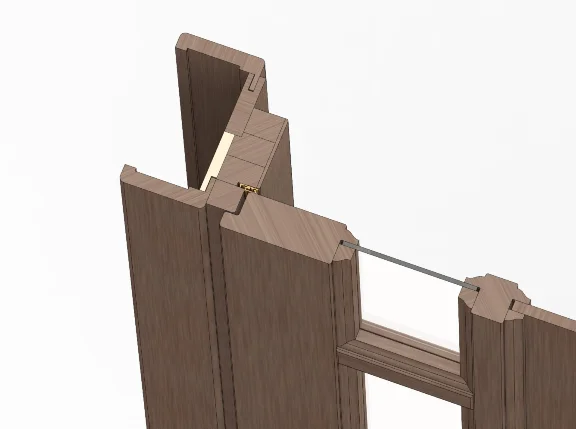

Door unit with parametric equations: block height, block width, depth of the unit. If you change these parameters, change the sizes of parts and assembly dimensions in the drawings and specifications. Further elaborated the assembly unit. Drawings for manufacturing (assembly drawings, specifications, detailed detailing) and the photo project.
Version of SolidWorks: 2011
File size, MB: 7.33
Short description:
Door unit with parametric equations: block height, block width, depth of the unit. If you change these parameters, change the sizes of parts and assembly dimensions in the drawings and specifications. Further elaborated the assembly unit. Drawings for manufacturing (assembly drawings, specifications, detailed detailing) and the photo project.
Version of SolidWorks: 2011
File size, MB: 7.33
Main features
- Content type Text
- Content description 482 symbols
- Updated on the site 10.04.2013
