Drawing axle shaft of the Inmotion V8 electric motor
Reviews 0
Secure deal
Instant delivery
Product description
Is the motor shaft (axle) broken? Do you want to make it yourself? Do you need a drawing for the production of a part? I offer a ready-made drawing made by a professional!
The package of documents includes:

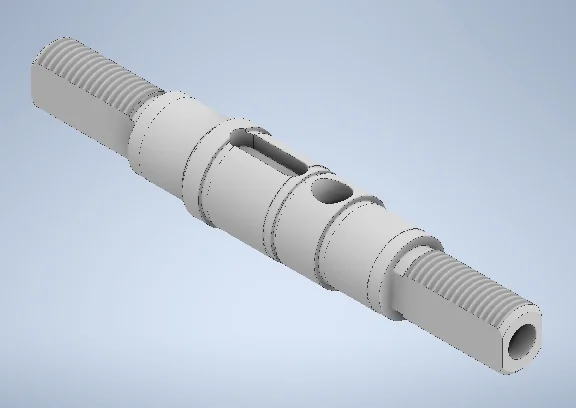

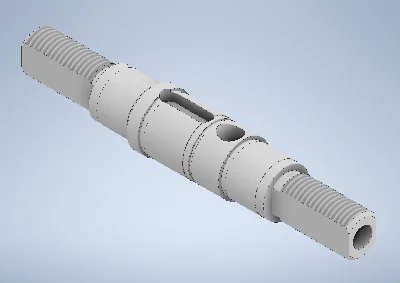

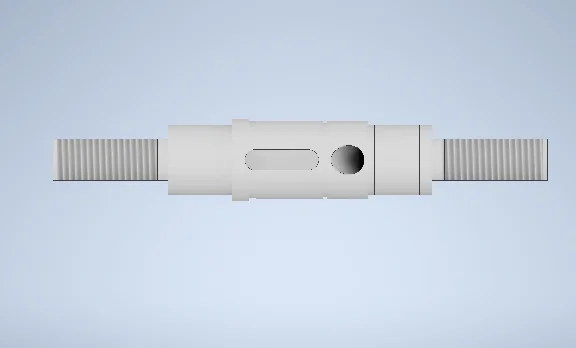

1. Drawing of the shaft axis of the electric motor (electric engine) of the Inmotion SCV V8 unicycle
2. Drawing with dimensions from the left edge
3. Drawing with dimensions from the right edge
4. Drawing of turning operation
5. Drawing of grinding operation
The package of documents includes:
1. Drawing of the shaft axis of the electric motor (electric engine) of the Inmotion SCV V8 unicycle
2. Drawing with dimensions from the left edge
3. Drawing with dimensions from the right edge
4. Drawing of turning operation
5. Drawing of grinding operation
Main features
- Content type File
- Content description 51,62 kB
- Added to the site 26.09.2024
Images
Additional information
Is it suitable for the Inmotion V8F model - I DON´T KNOW!
As a result you will receive: 3 files in PDF format:
Вал ось Inmotion V8_1.pdf
Вал ось Inmotion V8_2.pdf
Вал ось Inmotion V8_3.pdf
Токарная V8.pdf
Шлифовальная оп.20.pdf
As a result you will receive: 3 files in PDF format:
Вал ось Inmotion V8_1.pdf
Вал ось Inmotion V8_2.pdf
Вал ось Inmotion V8_3.pdf
Токарная V8.pdf
Шлифовальная оп.20.pdf
