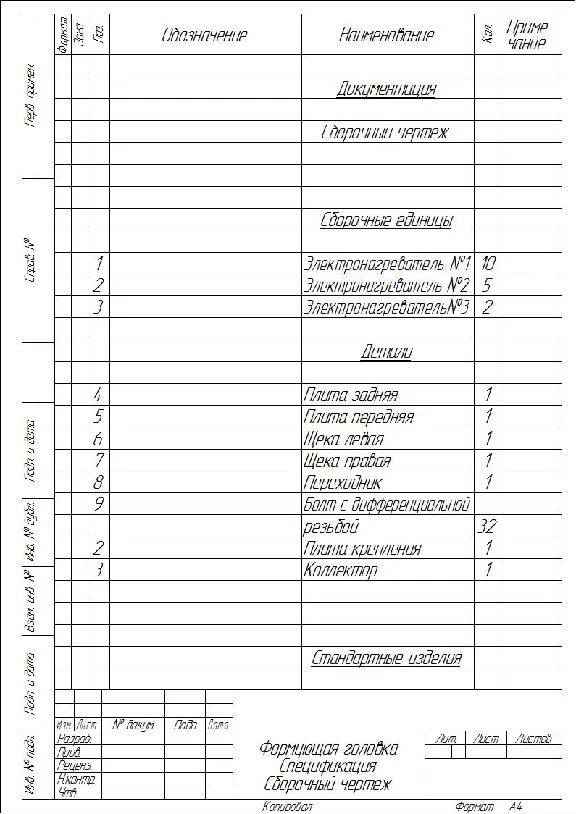

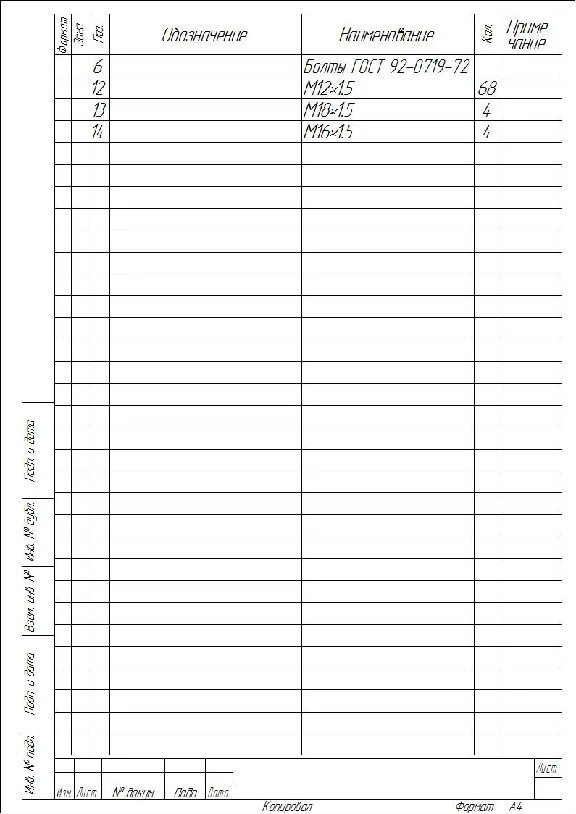

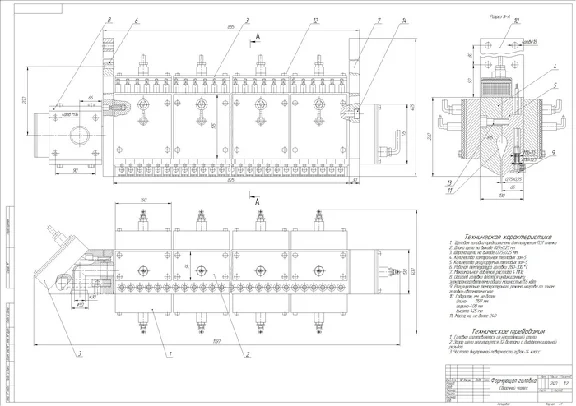

Drawing "Extrusion head (die)"

Drawing "Extrusion head (die)"

Technical specifications
1. The slot head is designed to produce PET film
2. Exit slot length, mm: 825+/-0.25 mm
3. Exit slot width, mm: 0.75+/-0.25 mm
4. Number of control thermal zones: 5
5. Number of adjustable thermal zones: 5
6. Operating temperature of the head, °C: 280-300
7. Maximum melt pressure, MPa: 4
8. Head heating: induction
9. Total power of electric heaters, kW: 11.6
10. Heating temperature control by head zones: automatic
11. Dimensions, mm, no more:
- length: 1197
- width: 400
- height: 425
12. Weight, kg, no more: 240
