Drawing installation for welding
Refunds: 0
Uploaded: 01.07.2016
Content: 218_ustanovka_svarki_prodol_i_kolzev_shvov.zip 54,56 kB
Product description

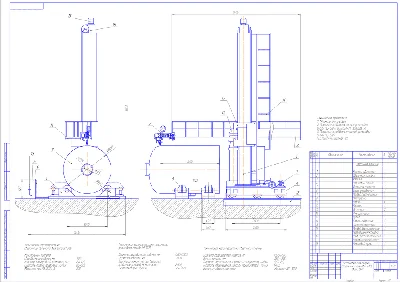

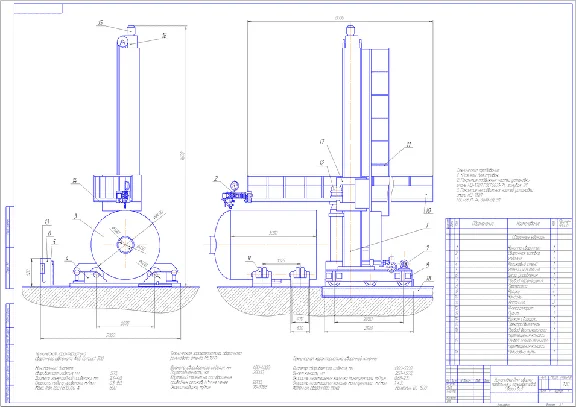

Drawing installation for welding longitudinal and circumferential welds (general view)
Technical characteristics of the welding machine A6S Compact 500:
The minimum diameter
welded, mm 500;
The diameter of the electrode wire 2,4-4,0 mm;
Wire feed speed. m / min 0,5-9,0;
Max. current at PV100%, A 800
Technical characteristics of the welding roller stand M61071:
The diameter of the object to be welded, mm 400-4000;
Carrying capacity of 20,000;
The torque on the axis of rotation
drive rollers, N * m of at least 2000;
Skorostsvarki m / min 75-3768
Technical characteristics of the welding column:
The diameter of the object to be welded, mm 1000-5500;
Boom extension, mm 250-4500;
The speed of the carriage arm, m / min 0,63-2,5;
The speed of the console manipulator, m / min 1-4,3;
welding power source Lincoln DC-1500
Additional information
Drawing is in compass
