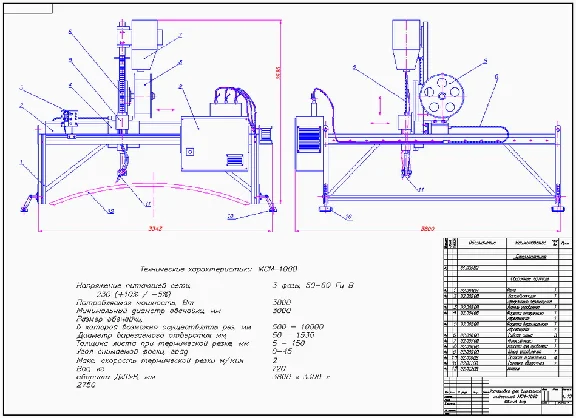

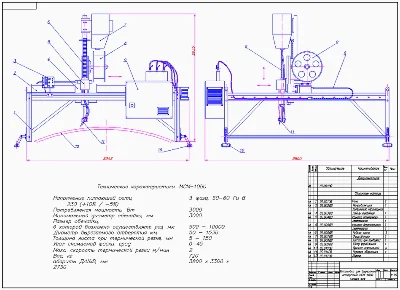

Drawing MWM-1000 systems for cutting holes
Refunds: 0
Uploaded: 05.03.2016
Content: 178 ustanov_privarki_shtuzerov_MSM-1000.zip 248,55 kB
Product description
MSM 1000 - frame construction made of aluminum, which is mounted on a transfer system consisting of servo motors, precision rail guides, precision steam rack - pinion gear and backlash-free, which provides a cutting tool five degrees of freedom.
Intended installation for cutting holes in a complex geometric shape designs: shell, spherical and conical caps, elliptic bottoms, etc...
On the product installation is fixed by means of magnetic clamps.
In addition, the machine MSM-1000 can be equipped with kits for submerged arc welding and gas shielded solid or cored wire of different manufacturers.
Specifications IMS-1000
Power supply, 3-phase, 50-60 Hz 230 (+ 10% / -5%)
Power consumption, W 3000
The minimum diameter of the shell, mm 3000
The size of the shell,
Additional information
The drawing is made in the program autocad, saved in .dxf format (to edit the file in AutoCAD and Compass)
