Drawing of the foundations for the sewage treatment pla

Drawing of the foundations for the sewage treatment plant Technosphere BIO-150U

Project scope:
- Total information

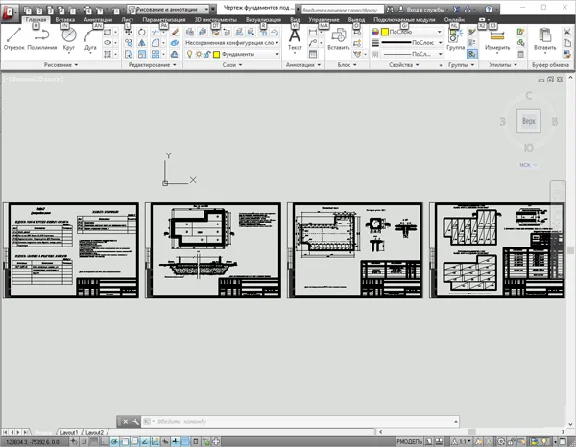

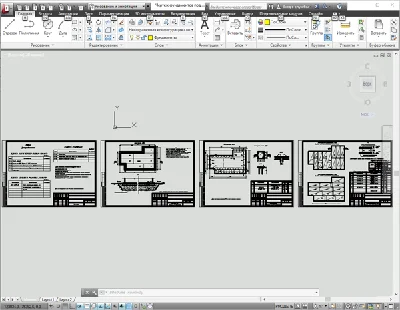

- Plan at mark 0.000. Cuts 1-1, 2-2. Specification.
- Base plate. Embedded detail ZD-1. Specification.
- Reinforcement of the base plate. Statement of metal consumption.
- Specification of reinforcement products on the base plate.
- Summary metal specification
