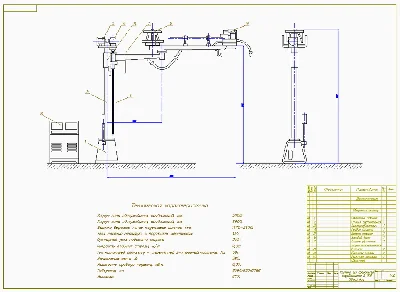

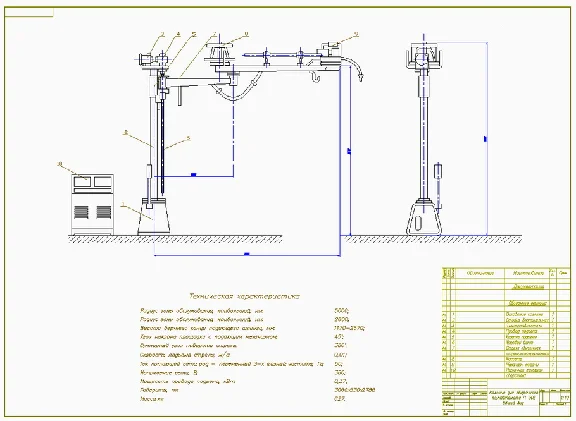

Drawing of welding column P302 for semiautomatic device

Technical specifications
The radius of the service area, the largest mm: 5000;
The radius of the service area, the greatest, mm 2800;
The height of the upper end of the supply hose, mm: 1170-2670;
The angle of the platform with the feeder 45;
The total angle of rotation of the boom: 300;
Boom speed, m / s: 0,01;
Current supply: - alternating 3-phase, frequency, Hz: 50;
Mains voltage, V; 380;
Power lifting drive, kW: 0,37;
Dimensions, mm 3060h530h2788
Weight, kg: 627.
