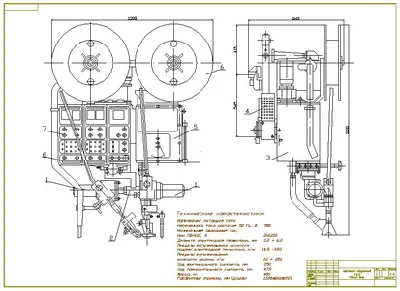

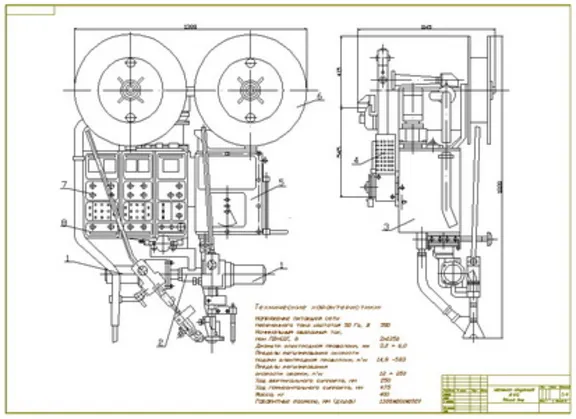

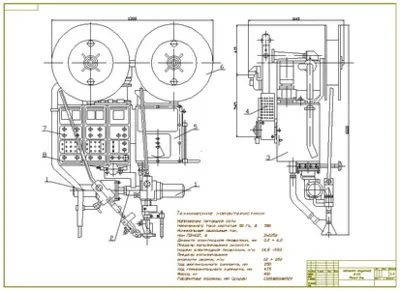

Drawing of welding machine A-1412 (overview)
Sold <10
The sale of this product is suspended.
Product description
Plans welding machine A-1412 (general view). A 1412 Automatic suspension type, designed for submerged arc welding. It has two feeders.
Specifications:
Supply voltage AC 50 Hz, 380
Rated welding current,
at 60% duty cycle, A 2h1250
The diameter of the welding wire, mm 3,0 ÷ 6,0
Range of wire feed speed, m \ h 14.9 -583
Range of welding speed, m \ h 12 ÷ 250
Proceedings of the vertical support, mm 250
Proceedings of the horizontal support, mm ± 75
Weight 400 kg
Overall dimensions (LxWxH) 1388 × 800 × 1820
Specifications:
Supply voltage AC 50 Hz, 380
Rated welding current,
at 60% duty cycle, A 2h1250
The diameter of the welding wire, mm 3,0 ÷ 6,0
Range of wire feed speed, m \ h 14.9 -583
Range of welding speed, m \ h 12 ÷ 250
Proceedings of the vertical support, mm 250
Proceedings of the horizontal support, mm ± 75
Weight 400 kg
Overall dimensions (LxWxH) 1388 × 800 × 1820
Main features
- Content type File
- Content description 49,71 kB
- Updated on the site 21.12.2011
Additional description
Drawing of is made in the program autocad, saved as a .dxf (to open the file in AutoCAD and Compass)
