Drawing of welding manipulator M11080-11 (overview)
Refunds: 0
Uploaded: 12.04.2014
Content: manipulyator_m11080-11.zip 46,7 kB
Product description

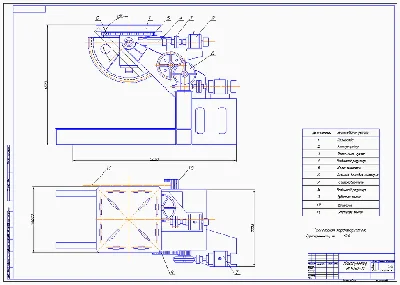

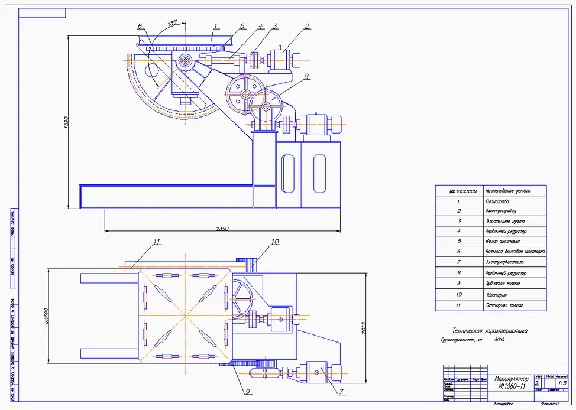

Drawing manipulator welding M11080-11 (general view). Payload 6300 kg
Technical characteristics of the welding manipulator M11080-11:
The maximum torque on the axis of rotation, Nm 1600;
Maximum load capacity 6300 kg;
The greatest moment of product´s center of gravity relative to the reference plane of the faceplate, 2500 Nm;
The diameter of circular welded joints, mm 500-2500;
Spindle speed, rev / min 0,025-1,25;
Adjusting the spindle speed - stepless continuously variable;
The angle of the faceplate, 135 degrees;
The angle of rotation of the faceplate, ± 360 deg;
Dimension, mm 2300 × 2025 × 1590;
Weight, kg 5050;
Additional information
Drawing of is made in the program autocad, saved as a .dxf (to open the file in AutoCAD and Compass)
