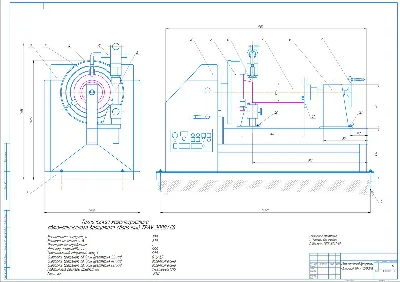

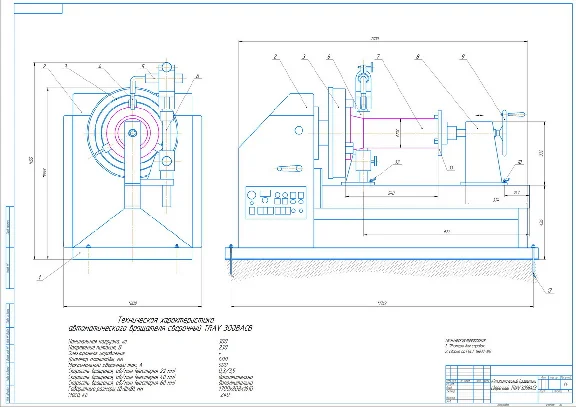

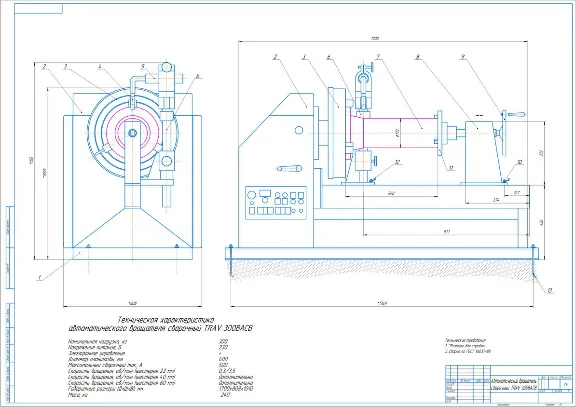

Drawing of welding rotator TRAV 300 BACB
Sold 10
The sale of this product is suspended.
Product description
Drawing of welding rotator TRAV 300 BACB
Technical characteristics of the stand
The maximum diameter of the pipes which may be welded, 600 mm
The maximum length of elements 600 mm
Dimensions (LxWxH) mm 1700h808h1010
Masa 240 kg
Technical characteristics of the stand
The maximum diameter of the pipes which may be welded, 600 mm
The maximum length of elements 600 mm
Dimensions (LxWxH) mm 1700h808h1010
Masa 240 kg
Main features
- Content type File
- Content description 258,06 kB
- Updated on the site 24.05.2021
Additional description
In the archive:
-Drawing in dwg formats - AutoCad;
- Drawing in cdw format - Compass;
- Drawing in PDF format
-Drawing in dwg formats - AutoCad;
- Drawing in cdw format - Compass;
- Drawing in PDF format
