Drawing of welding trolley with clamping
Refunds: 0
Uploaded: 02.10.2015
Content: 38_teleg_portal.zip 30,86 kB
![icon-delivery](/img/icon-delivery.png)
Delivery Guaranteed
If you are unhappy with a product you purchased, the seller will return your money within 1 day from the moment of purchase.Product description

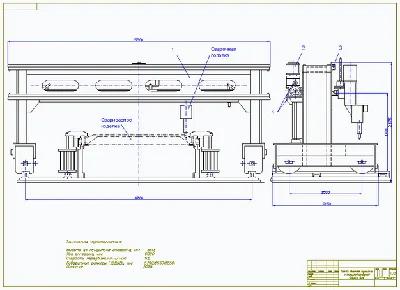

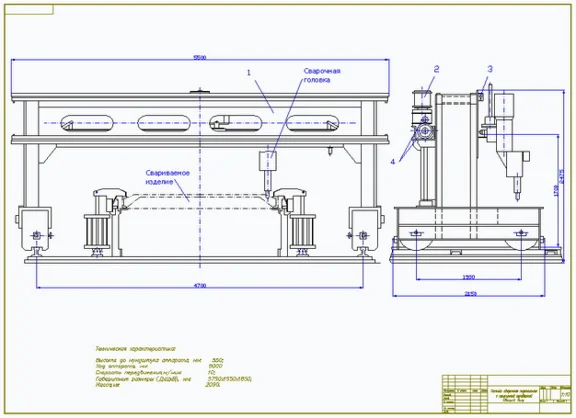

Drawing of a welding trolley with a clamping crosshead (general view)
Technical specifications:
Height to the mouthpiece of the device, mm: 550;
Apparatus stroke, mm: 5000
Travel speed, m / min: 10;
Overall dimensions (LxWxH), mm: 5750x1550x1850;
Weight, kg: 2090.
----
The cart consists of a frame 1, a clamp 2, and guides 4, for a welding tractor and a movement mechanism 3, which includes an electric motor, a gearbox, transmission shafts, and two pairs of bevel gears transmitting movement to the rollers.
The product is pressed by the clamp 2, with the help of 20 pneumatic cylinders. When welding, the machine moves along the guides 4.
Additional information
Drawing made in the program autocad, saved as a .dxf (to open the file in AutoCAD and Compass)
