Drawing. Stand for assembly of box constructions №1
Refunds: 0
Uploaded: 08.03.2016
Content: 77__portal_dlya_sborki_1+.zip 70,11 kB
Product description

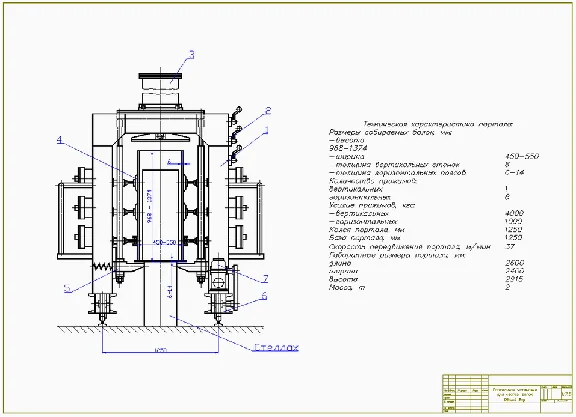

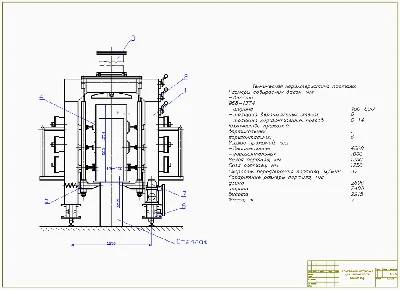

Drawing. Stand for assembling of box constructions №1 (general view)
Self-propelled portal with six horizontal and one vertical pneumatic clamps.
The portal consists of a welded frame 1, moving on wheels 6, vertical 3 and horizontal 4 pnevmoprizhimov and grabs 5. Hooks and vertikalvy clamp form a closed power system unloads the frame and the running wheels of the portal
of the vertical forces. The air from the shop network is applied to the pneumatic cylinder rams through distribution valves 2. The portal is equipped with traveling gear 7 with an electric motor, worm gear and chain drive. Installed on a horizontal belt, which is located on the rack, side plates are held in a vertical position special.
The portal is set against the potholders places (since the end of the beam), included
side and top pressure and made potholder sidewalls pressed against the horizontal belt and diaphragms. After that, the clamp is given and the portal is moved along the beam to the place of the next tack.
This cycle is repeated as necessary.
Technical characteristics of the portal:
Dimensions collected beams, mm:
-height ........................... 968-1374
the width of 450-550 ............................
the thickness of the vertical walls ..................... 6
the thickness of the horizontal zone ..................... 6-14
Number of clamps:
vertical ...................... 1
horizontal ................... 6
Clamping force, kgf:
vertically ...... 4000
horizontally ................... 1000
Track portal, mm ................... 1250
Base portal .................... 1250 mm
Movement speed of the portal m / min ......... 37
Overall dimensions of the port, mm:
length ............................ 2600
width ............................ 2400
Height ........................... 2915
Weight, t .............................. 2
Переводчик Google для бизнеса –Инструменты переводчикаПереводчик сайтовСлужба "Анализ рынков"
Additional information
Drawing of is made in the program autocad, saved as a .dxf (to open the file in AutoCAD and Compass)
