Product description
Чертежи выполнены в автокаде.
Main features
- Content type File
- Content description 3020,76 kB
- Added to the site 09.10.2013
Images
Additional information

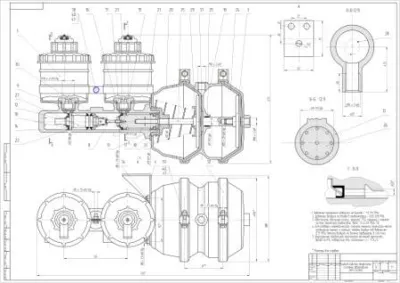

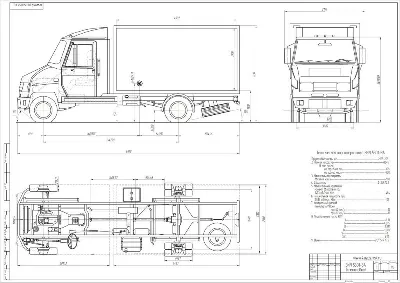

There are drawings: transmission cardan, fork, cross, Kung ZIL 131 ZIL 130 ZIL braking circuit 5301, ZIL-5301 VA line-up, the characteristics of ZIL-433422, Main gear
ZIL-431410, Drive braking system ZIL-5301VA, ZIL-431410, rear leaf spring suspension ZIL-5301, steering ZIL 130 stand for the control parameters of the vehicle brake, clutch ZIL-5301
Some of the drawings in the Ukrainian language. If AutoCAD old, and some of the drawings are not open, you can open the program "Compass"
ZIL-431410, Drive braking system ZIL-5301VA, ZIL-431410, rear leaf spring suspension ZIL-5301, steering ZIL 130 stand for the control parameters of the vehicle brake, clutch ZIL-5301
Some of the drawings in the Ukrainian language. If AutoCAD old, and some of the drawings are not open, you can open the program "Compass"
