Product description

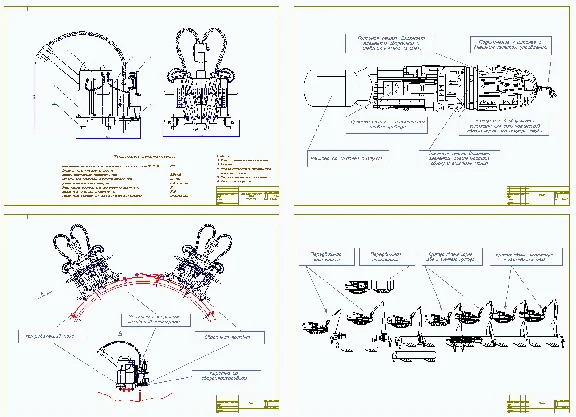

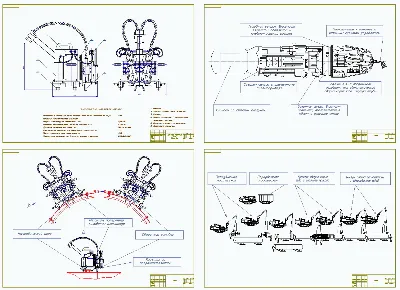

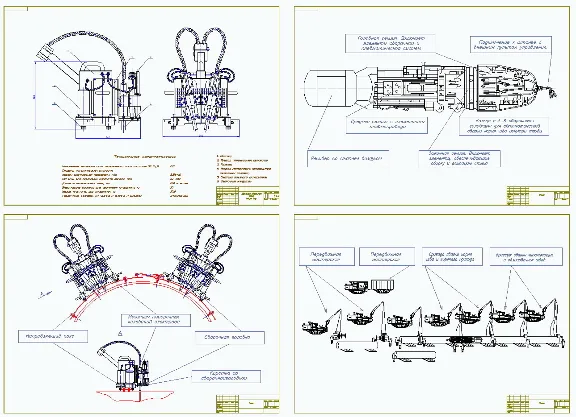

Drawings installation welding P-600 (P-600) 4 pcs
Set of 4 sheet.
1. Installation for pipe welding P-600 (P600) / Automatic welding circumferential joints;
2. Internal centering for pipes;
3. Scheme of welding pipe joint two units R-600;
4. The circuit main pipeline welding.
Set of 4 sheet.
1. Installation for pipe welding P-600 (P600) / Automatic welding circumferential joints;
2. Internal centering for pipes;
3. Scheme of welding pipe joint two units R-600;
4. The circuit main pipeline welding.
Main features
- Content type File
- Content description 864,38 kB
- Added to the site 21.09.2013
Additional description
The drawing is made in the program autocad, saved as a .dxf (to open the file in AutoCAD and Compass)
