Engineering symbols

Collection conditional graphical symbols for engineering drawings, diagrams, plans, maps and in relevant technical product documentation.

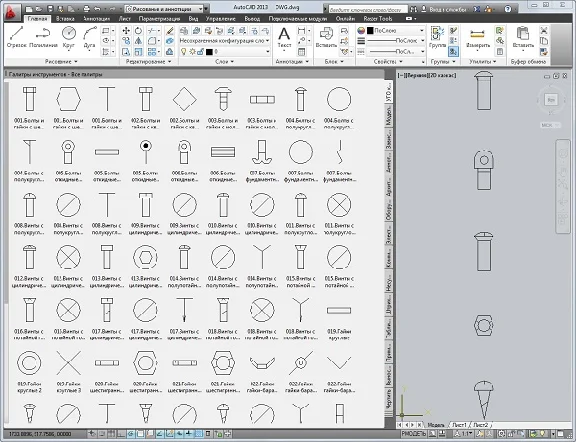

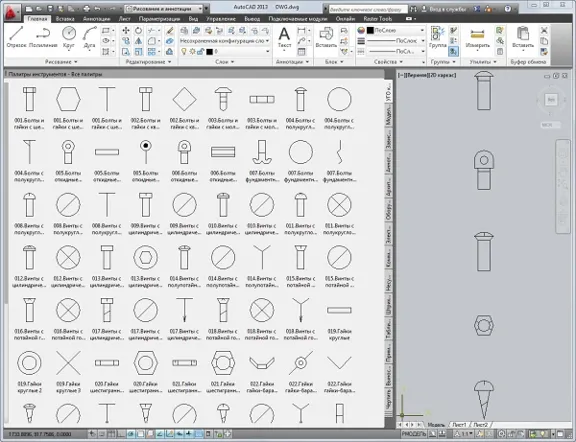

1. ASB fasteners
GOST 2.315-68 "Unified system for design documentation. Pictures simplified and conventional fasteners. "

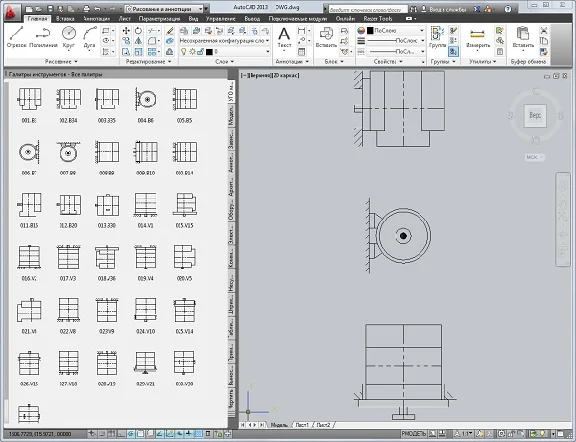

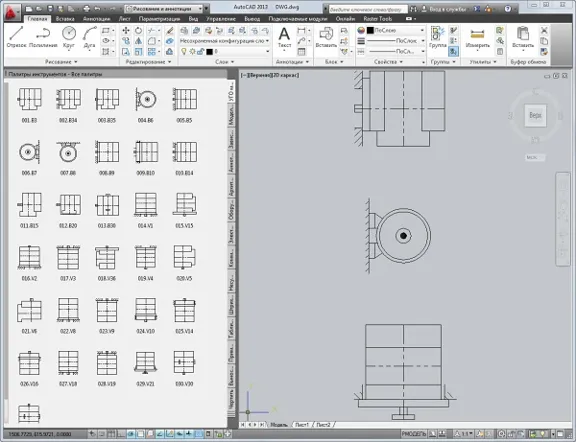

2. ASB cars on way of installation
GOST 2479-79 "Rotating electrical machines. Symbols Design on way of installation. "

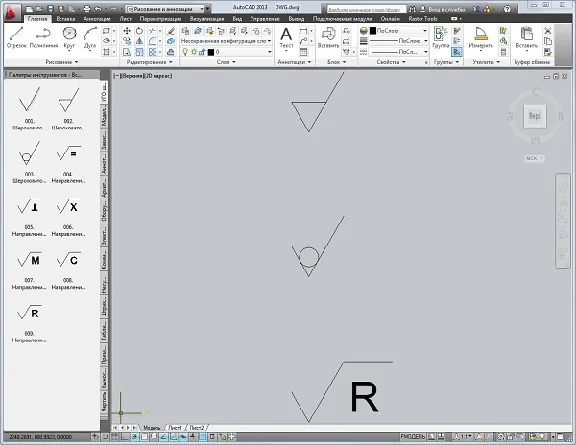

3. ASB permanent joints
GOST 2.313-82 "Unified system for design documentation. Symbols and notation of permanent connections. "

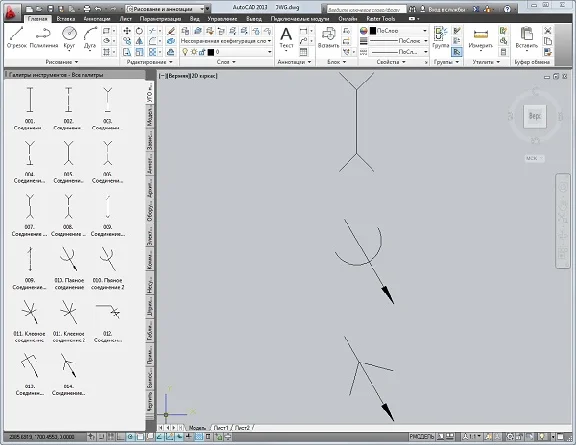

4. ASB support clamps
GOST 3.1107-81 "Unified system of technological documentation. Supports, clamps and mounting devices. Symbols ".

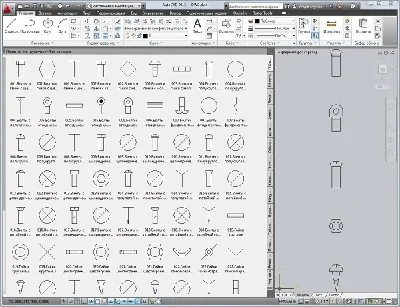

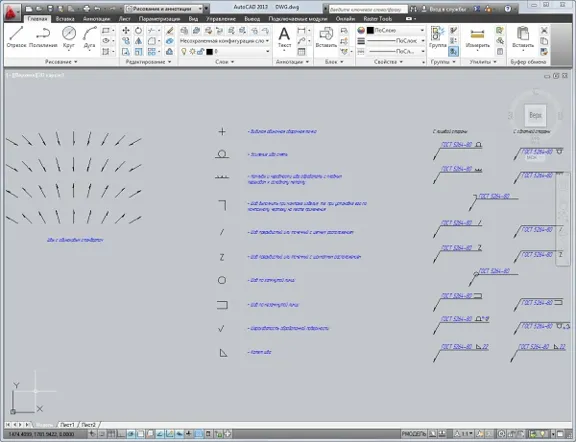

5. ASB welds
GOST 2.312-72 "Unified system for design documentation. Symbols and designations of the welds. "

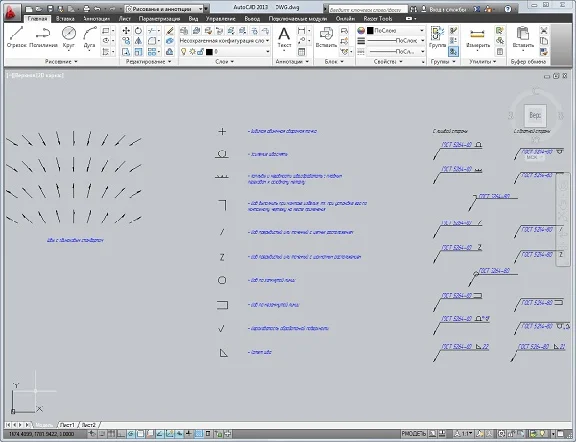

6. ASB surface roughness
GOST 2.309-73 "Unified system for design documentation. Surface texture symbols. "

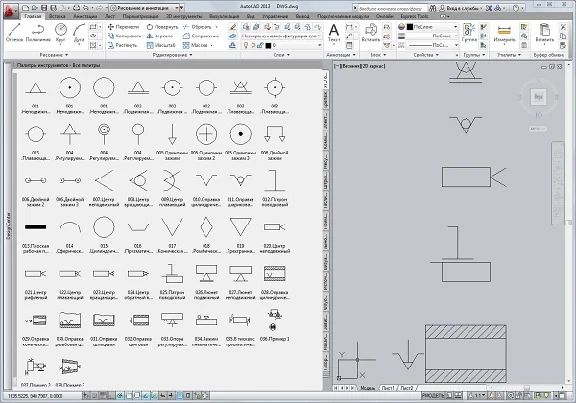

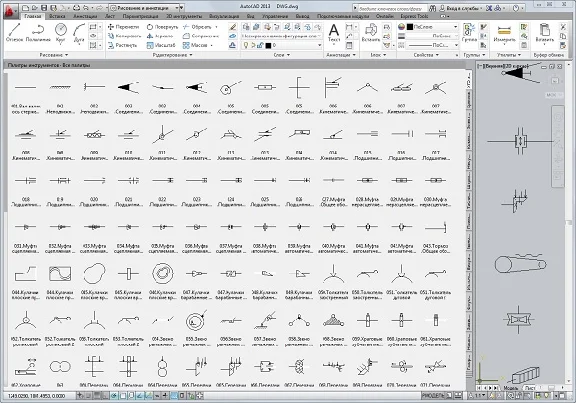

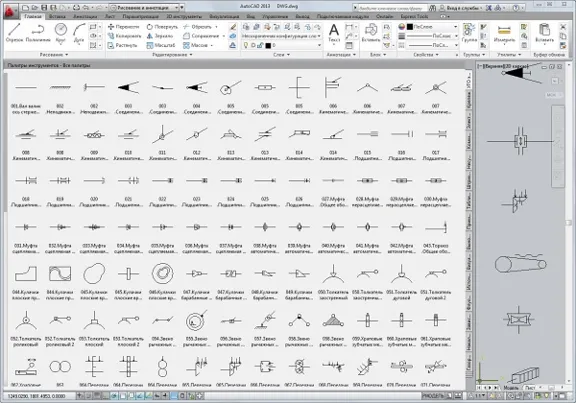

7. ASB elements kinematics
GOST 2.770-68 "Unified system for design documentation. Conditional graphic designations in schemes. Elements kinematics ".

TAGs: drawing of bolts, nuts, drawing, drawings, engineering, engineering technology, roughness processing, processing details.

Format - DWG.
7 regulations.
243 element.
100% in accordance with GOST.

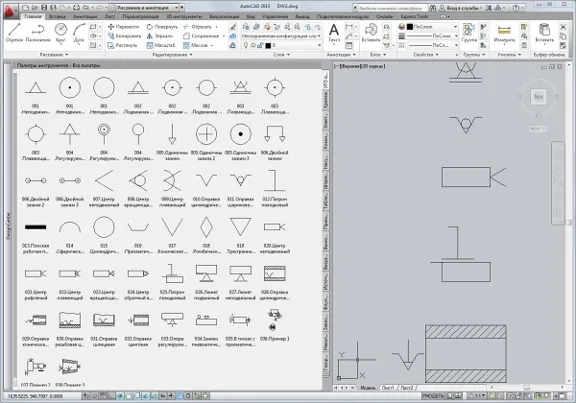

Elements for easy tool palette assembled in blocks of AutoCAD 2010.

The archive also contains the halyards, made as a standard drawing format, DWG, compatible with AutoCAD 2000-2016, Compass, ZWCAD, nanoCAD, BricsCAD etc.
