Installation of a power transformer TMG-160 kVA

Rabochiy proyekt ustanovki silovogo transformatora TMG-160 kVA. Transformator i sposob yego ustanovki razrabotan na osnovanii TU 3411-001-72210708-2004 ZAO "Gruppa kompaniy "Elektroshchit"- TM Samara". Sostav chertezhey na ustanovku TMG-160 kVA: - Obshchiye dannyye. - Skhema raspolozheniya stroitelʹnykh konstruktsiy podstantsii. - Fundament FM-1. - Transformator silovoy TMG-160/6-U1. Plan, vidy. - Spetsifikatsiya oborudovaniya i materialov k listu 4. Format - DWG, sovmestimyy s AutoCAD 2004-2017, Kompas, ZWCAD, nanoCAD, BricsCAD i t.d.
Ещё
521 / 5 000
Результаты перевода
Working project for the installation of a power transformer TMG-160 kVA.
The transformer and the method of its installation were developed on the basis of TU 3411-001-72210708-2004 of CJSC Electroshield Group of Companies - TM Samara.

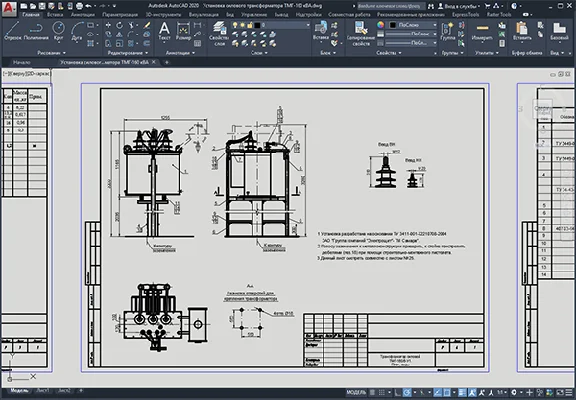

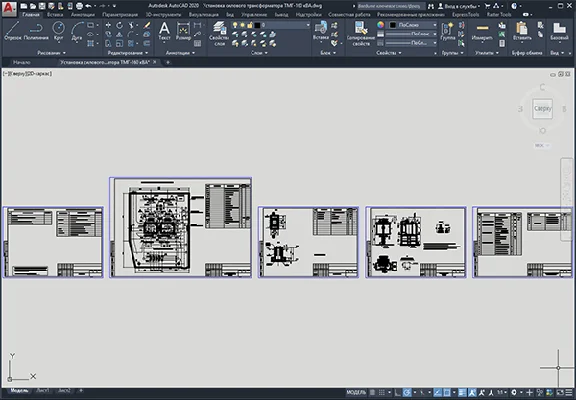

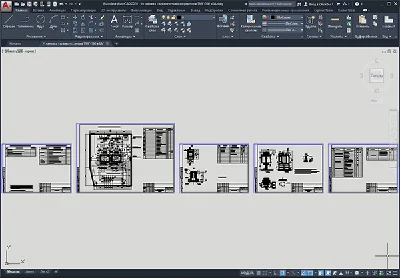

The composition of the drawings for the TMG-160 kVA unit:
- Common data.
- Scheme of the location of building structures of the substation.
- Foundation FM-1.
- Power transformer TMG-160/6-U1. Plan, views.
- Specification of equipment and materials to sheet 4.

Format - DWG compatible with AutoCAD 2004-2017, Compass, ZWCAD, nanoCAD, BricsCAD, etc.
