Product description

Course work. Resistance welding pans

Language of work - Ukrainian;
possible translation into Russian (extra charge)

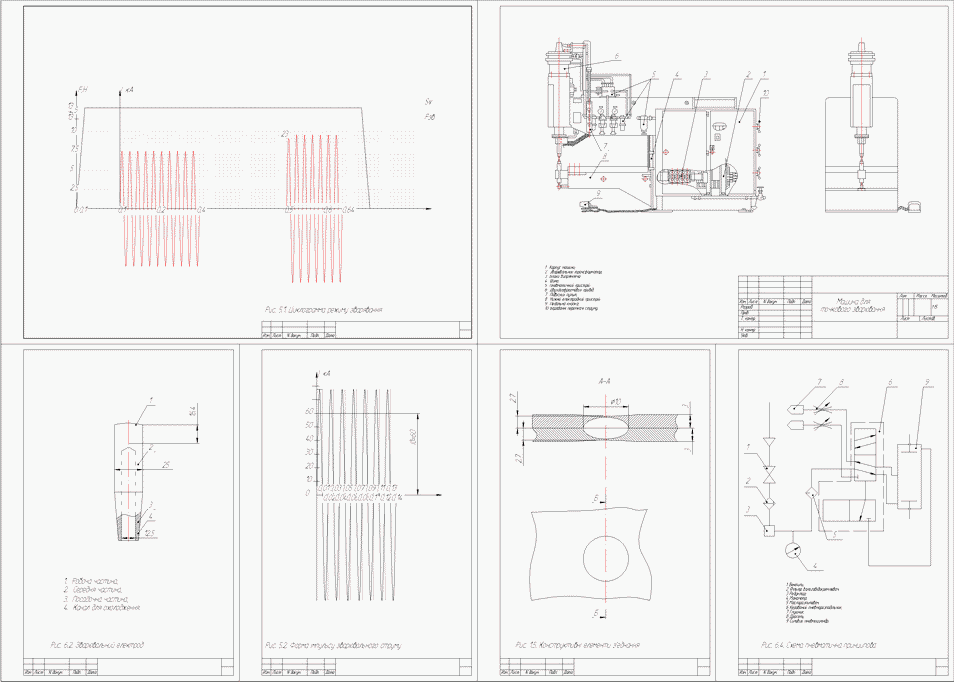

Graphic part (drawings are executed in AutoCad):
1) Sequence diagram - A3;
2) A general view of the contact spot welding machines - A3;
3) The electrode - A4;
4) Waveform welding - A4;
5) Components connections Welding - A4;
6) The pneumatic drive scheme - A4

Source data:
The product - pan;
Material - Aluminum AMg6;
The thickness of the parts - 3.1 mm;

1.1 The chemical composition of the material 2
1.2 Physical and mechanical properties of the material 2
1.2.1 Physical properties of 2
1.2.2 Mechanical properties of 3
1.3 Characteristics of the material in terms of connectivity pressure welding methods 3
1.4 Description of the construction product and the conditions of his work 4
2 BASIS OF THEORY welding methods 5
2.1 The scheme of formation of the welded joint 5
2.2 Description of the heat source, which exists in the welding connection 5
3, process manufacturing unit 7
3.1 Production of details 7
3.2 Preparation of the surface of the workpiece for welding 7
3.3 Preparation of 7
3.4 Tack 8
3.5 Welding and further processing 8
3.6 Possible defects in welding selected welding process 8
3.7 An optimal quality control method of the welded assembly 11
4 cyclegramm main parameters of welding conditions and the recommended value of the corresponding value of 12
5.1 Welding machine 12
5.2 Selecting the shape of the electrodes 13
5.3 The material for the electrodes 13
Переводчик Google для бизнеса –Инструменты переводчикаПереводчик сайтовСлужба "Анализ рынков"

Additional information

Graphic part (drawings are executed in AutoCad):
