Product description

Overall dimensions: H = 3337, 3908h3778
Short description:

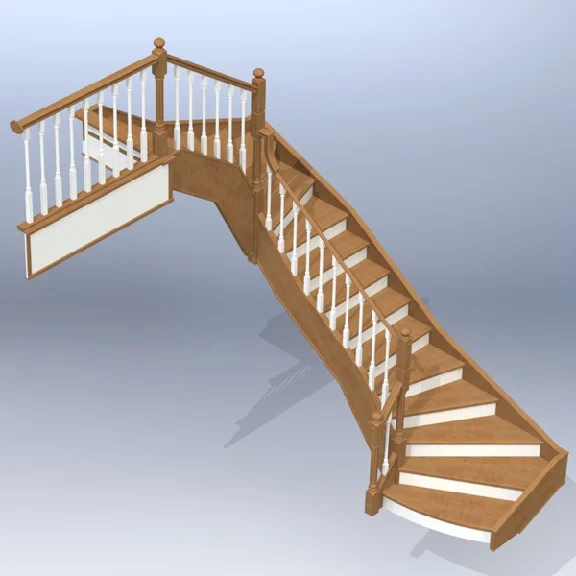

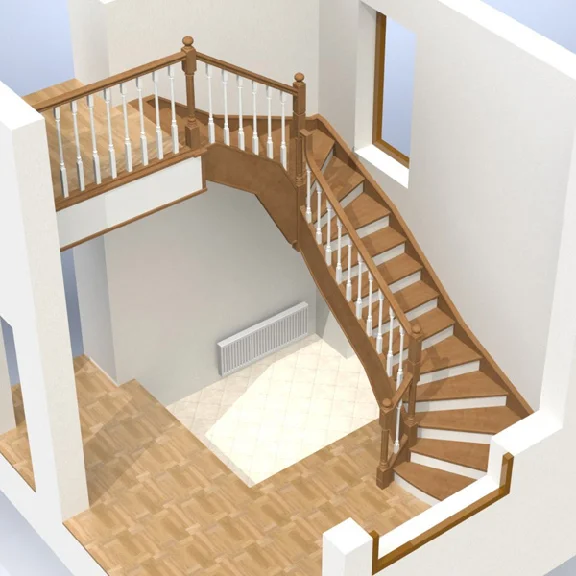

U-shaped staircase to "hanging pole." Frame wooden stairs. The design of the frame: tetivnaya. Further elaborated assembly SolidWorks. Full documentation for the manufacture of: a photo project, assembly drawings, specification, detailing (+ documentation PDF).
Version of SolidWorks: 2012
File size, MB: 39.85

Main features

  • Content type Text
  • Content description 474 symbols
  • Added to the site 10.04.2013
