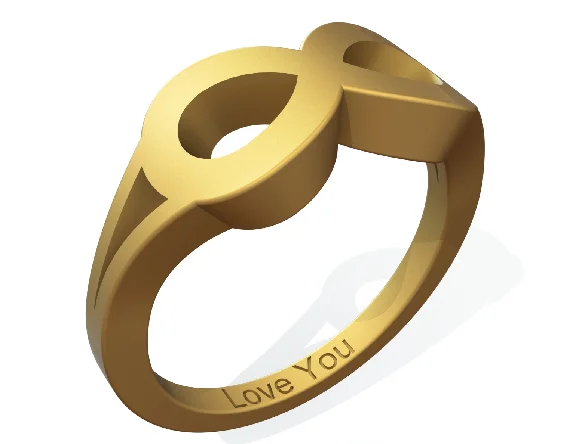

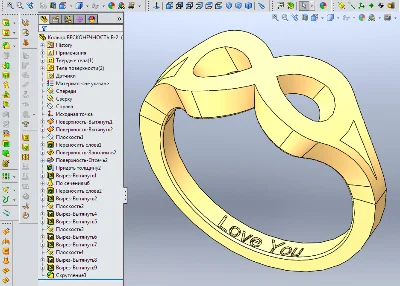

Lesson №70. Modeling ring "Infinity"
Refunds: 0
Uploaded: 30.05.2015
Content: text 685 symbols
Уроки по SolidWorks
seller information
Seller will give you a gift certificate in the amount of
Product description
We continue to learn to model jewelry program SolidWorks. In the previous lesson we learned how to simulate the seal. Today the time has come to complicate the task, and to do something more complicated. In this tutorial, we will simulate a 3D-model of the complex rings, using a variety of tricks and gimmicks. Knowledge of these features will be useful to everyone, regardless of profile and skills. And finally, the lesson learned to add an inscription (engraved) on the inner surface of the ring.
Additional information
Lesson Synopsis №70
entry
Statement of the Problem
Adding support surfaces and basic sketches
Drawing the contours of the upper ring
Transfer of the pattern on the surface

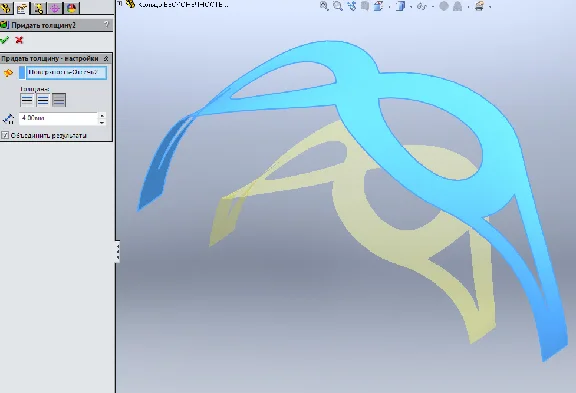

Finalization of the surface of infinity
Creation of a solid top of the ring

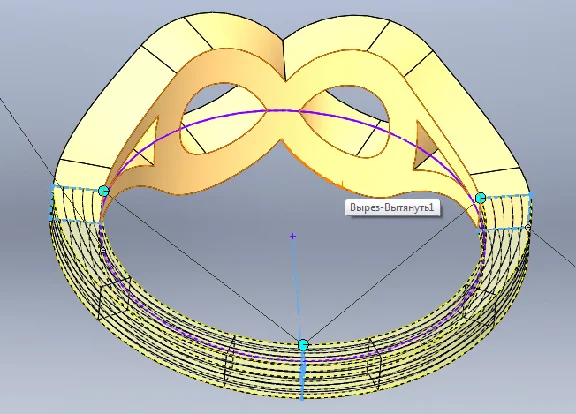

Adding the lower part of the ring

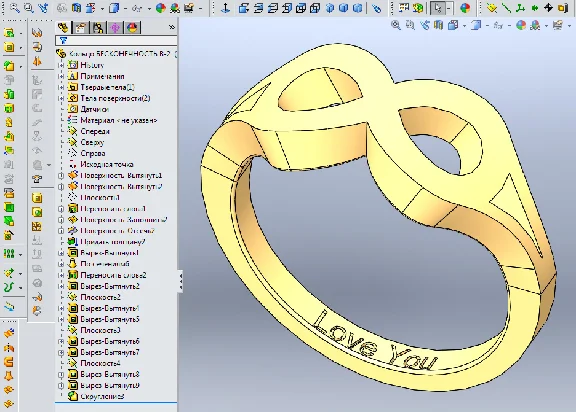

Adding inscription (engraving) on the inner part of the ring
Rounded contour ring
