Lighting symbols

Collection conditional graphic symbols for the design of lighting systems and building automation.
Category of ACS: Internal and external lighting, decorative lighting, emergency lighting.

Created by: Catalogs and model projects OSRAM, Philips, ABB. Translated into Russian.

Format - DWG.
44 element.
100% in accordance with GOST.

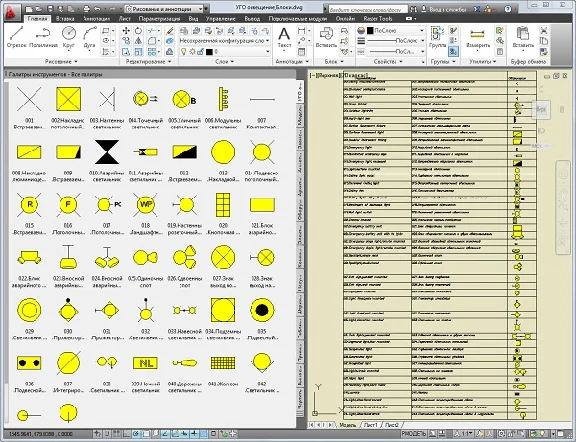

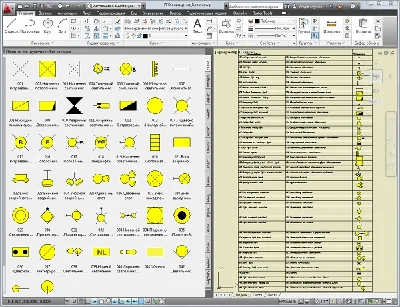

Elements for easy tool palette assembled in blocks of AutoCAD 2010.

The archive also contains the halyards, made as a standard drawing format, DWG, compatible with AutoCAD 2004-2016, Compass, ZWCAD, nanoCAD, BricsCAD etc.
