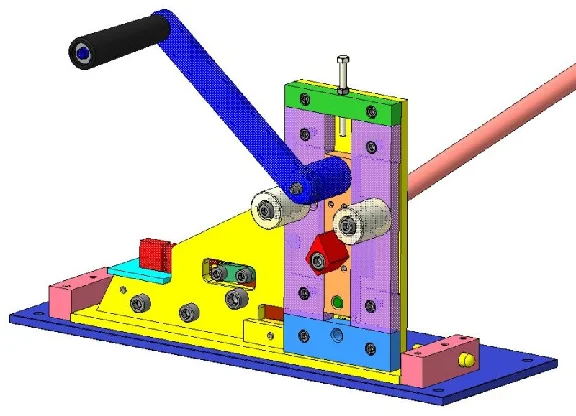

Universal attachment for cold metal forging

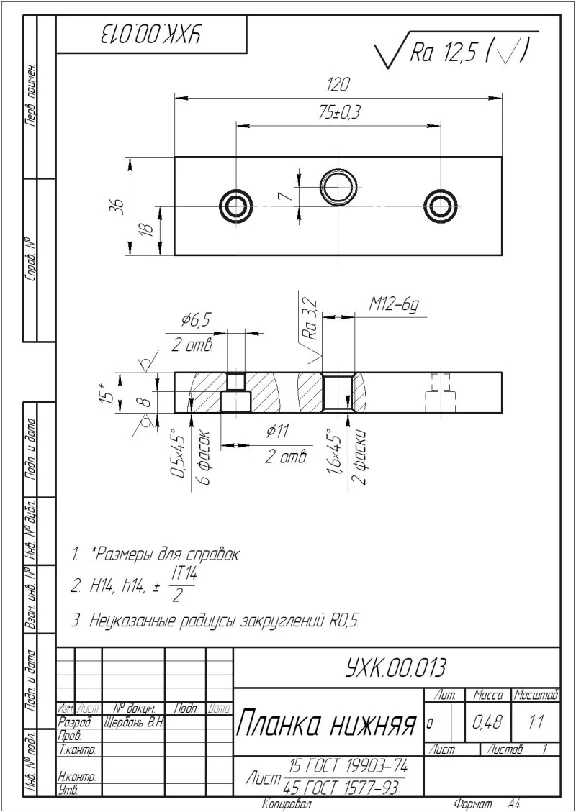

(Drawings of equipment for cold forging)
Operations:
-Rezka Band max. 40x4, 25x5, wires up to 6 mm and a square of 6 mm,
-Probivka Holes of 5 mm, and the connection elements by rivets,
-Valtsovka Arcs and districts of the strip max. 40x4, 30x5, 25x6, 20x8 mm wire up to 14 mm square and 14 mm,
Flexion angles of up to 120 bars max. 40x4, 30x5, 25x6, 20x8 mm wire up to 10 mm square and 10 mm
Is the mass, kg. 21

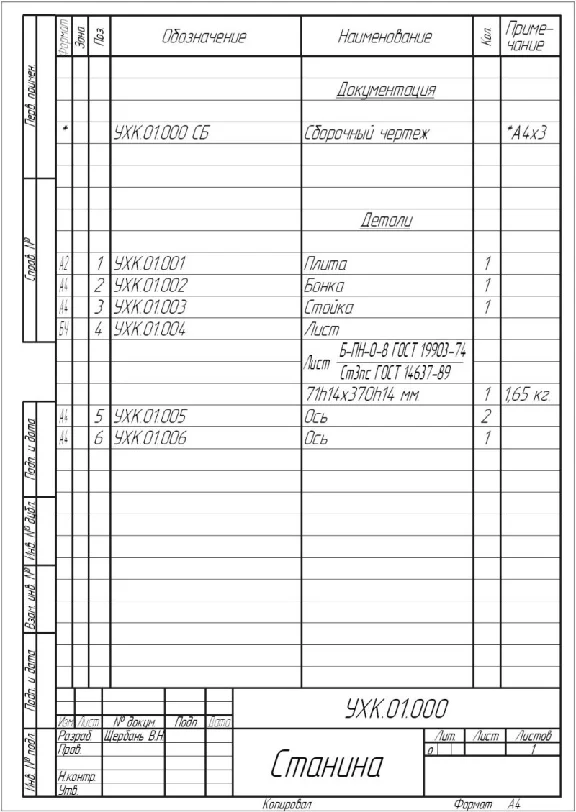

The documentation set includes assembly drawings, specifications and detailing - just 43 sheets of A4-A1. The drawings are made according to the rules of ESKD (Unified system for design documentation). Even if you are not able to make their own, you can order these drawings in any engineering enterprise.
Drawings tif format with a resolution of up to 1247x1760 3514x2487 (stored 1: 1)

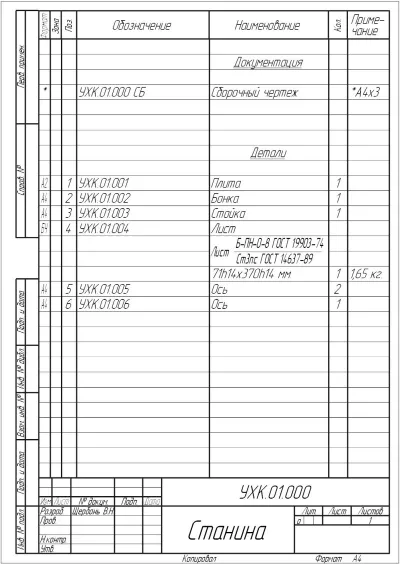

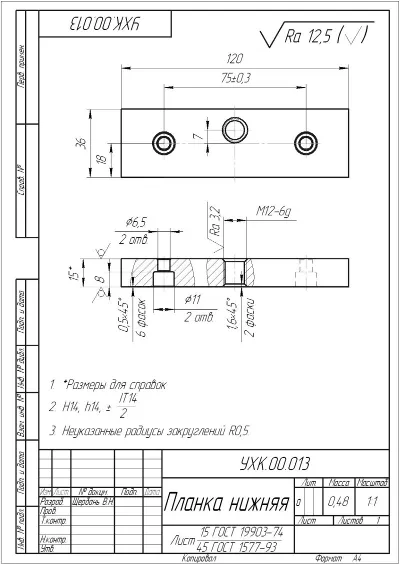

(Drawings of equipment for cold forging)
Operations:
-Rezka Band max. 40x4, 25x5, wires up to 6 mm and a square of 6 mm,
-Probivka Holes of 5 mm, and the connection elements by rivets,
-Valtsovka Arcs and districts of the strip max. 40x4, 30x5, 25x6, 20x8 mm wire up to 14 mm square and 14 mm,
Flexion angles of up to 120 bars max. 40x4, 30x5, 25x6, 20x8 mm wire up to 10 mm square and 10 mm
Is the mass, kg. 21
The documentation set includes assembly drawings, specifications and detailing - just 43 sheets of A4-A1. The drawings are made according to the rules of ESKD (Unified system for design documentation). Even if you are not able to make their own, you can order these drawings in any engineering enterprise.
Drawings tif format with a resolution of up to 1247x1760 3514x2487 (stored 1: 1)
