Product description

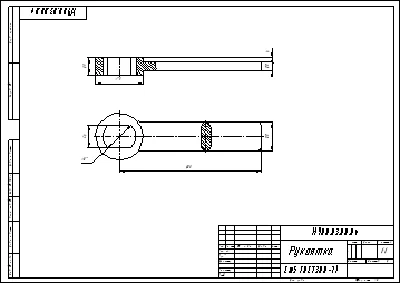

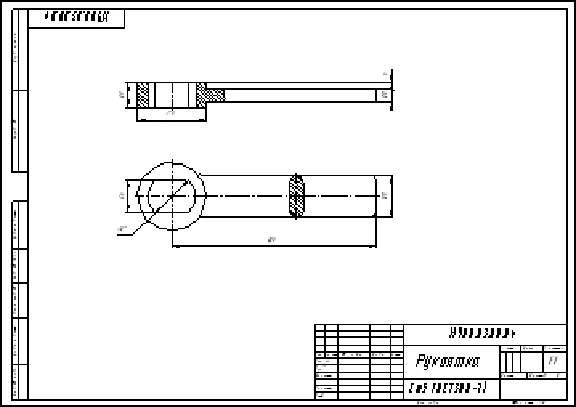

Detail of the "handle" to SK Bogolyubov "Reading and detalirovanie assembly drawings" Publisher album "Mechanical Engineering" Moscow 1986 Code MCH00.22.00.04 drawing details.

Ingredients: Drawing detail. * .cdw

Made in the program KOMPAS-3D V13.

There are parts made in 2D and 3D - See. Profile.

Main features

  • Content type File
  • Content description 15,35 kB
  • Added to the site 18.01.2016
