MCH00.39.00.00.01 - Housing (Bogolyubov SK)

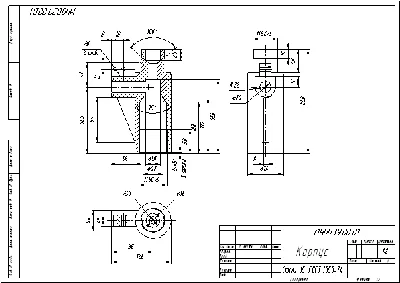

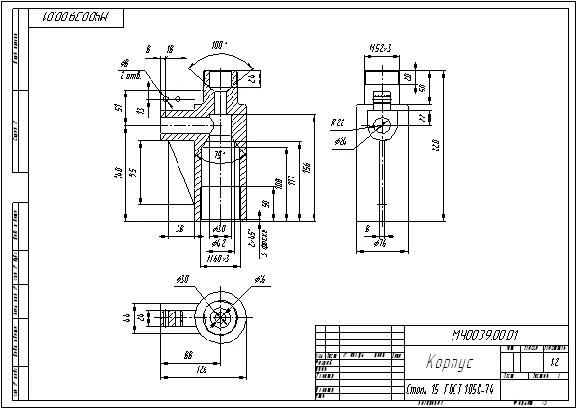

Detail "Body" with SK Bogolyubov "Reading and detalirovanie assembly drawings" Publisher album "Mechanical Engineering" Moscow 1986. The code of the workpiece drawing MCH00.39.00.01.
The item is provided with the assembly drawing MCH00.39.00.00.SB - Valve nutritious.

Ingredients: Drawing detail. Drawing Format * .cdw. + 3D-model details. The format of the model * .m3d

Made in the program KOMPAS-3D V11.


The product is sold on an "as is". Look carefully predosmotr. If you need the full support of the work (changing the drawing, correcting comments, etc. to complete surrender) to write a PM, perform additional fee.
