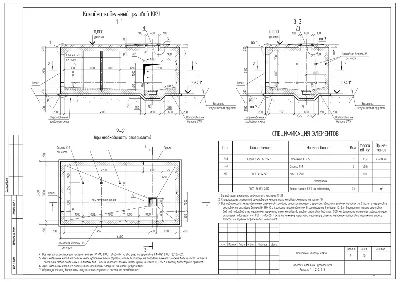

Monolithic wells connection, angle and straight (DWG)
Sold: 8
Refunds: 0
Uploaded: 17.09.2015
Content: wells connection.7z 809,12 kB
Refunds: 0
Uploaded: 17.09.2015
Content: wells connection.7z 809,12 kB
Product description
Detailed design of the device monolithic concrete wells communication.
Developed under the Model A10-2011 album "Laying cables in sewer block with double-walled corrugated pipes JSC" BCS "
Presented are two types:
1. Well the cable straight
2. Well cable corner
Passed examination.
Additional information
1 file - editable format DWG (includes 22 sheets of A3). Scheme of reinforcement components, elements specification.
1 file - editable format xlsx. Summary of Quantities/
