Product description
Collection of conditional graphic designations for development projects for the production of works (PPR) lifting machines and routings, loading and unloading.
Created by: RD-11-06-2007 "Guidelines on the procedure for the development of projects of works of lifting equipment and process maps loading and unloading."
TAGs: project of construction, the construction plan.
Format - DWG.
93 element.
100% in accordance with GOST.

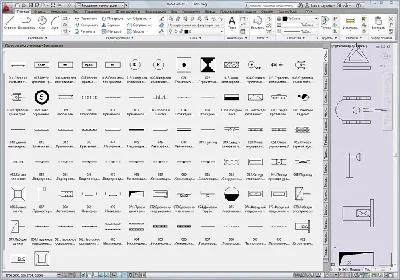

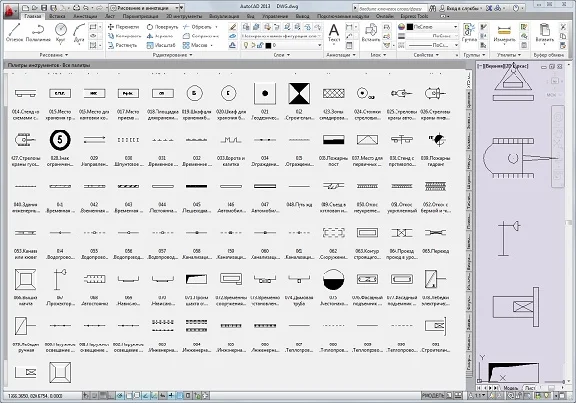

Elements for easy tool palette assembled in blocks of AutoCAD 2010.
The archive also contains the halyards, made as a standard drawing format, DWG, compatible with AutoCAD 2000-2016, Compass, ZWCAD, nanoCAD, BricsCAD etc.
Created by: RD-11-06-2007 "Guidelines on the procedure for the development of projects of works of lifting equipment and process maps loading and unloading."
TAGs: project of construction, the construction plan.
Format - DWG.
93 element.
100% in accordance with GOST.
Elements for easy tool palette assembled in blocks of AutoCAD 2010.
The archive also contains the halyards, made as a standard drawing format, DWG, compatible with AutoCAD 2000-2016, Compass, ZWCAD, nanoCAD, BricsCAD etc.
Main features
- Content type File
- Content description 374,82 kB
- Updated on the site 24.09.2015
