Product description

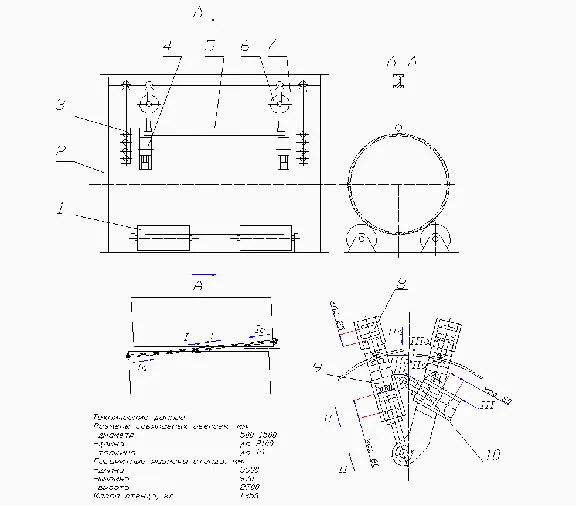

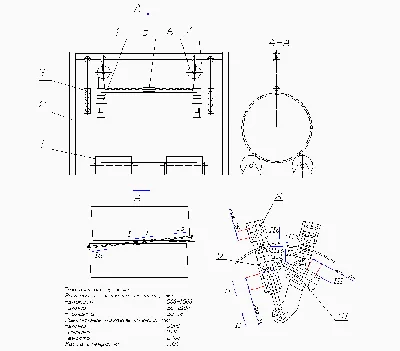

Plans for a joint stand of the longitudinal edges of the shells
Technical data of the stand:
Dimensions collected shells, mm:
-diameter 500-1500
length of up to 2100
the thickness of up to 16
Overall stand dimensions:
-length 5500
the width 970
-height 2700
Stand Weight, kg 1350
Technical data of the stand:
Dimensions collected shells, mm:
-diameter 500-1500
length of up to 2100
the thickness of up to 16
Overall stand dimensions:
-length 5500
the width 970
-height 2700
Stand Weight, kg 1350
Main features
- Content type File
- Content description 84,05 kB
- Added to the site 08.03.2016
Additional information
The drawing is made in the program autocad, saved in .dxf format (to open the file in AutoCAD and Compass)
