Product description
LPG tank plant design. The detailed design includes the supply of liquefied petroleum gas (LPG) to the production complex, including the installation of a gas pipeline, two tanks, and an evaporator. The LPG is intended for heating the production facility.
The detailed design is created in AutoCAD (DWG) and includes the following drawings:
- LPG tank plant layout plan.
- Gas pipeline routing along the production facility facade. Views A and B.
- Axonometric diagram.
- Tank installation. Plan.

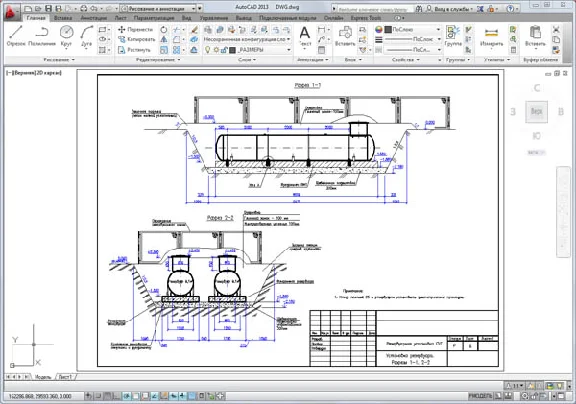

- Tank installation. Sections 1-1, 2-2.
- Gas pipeline and equipment layout. Plan.
- 9.1 m³ LPG tank. Factory-fabricated.
- Foundation and support locations. Plan.
- Tank farm fencing. Plan. View A.
- Tank foundation. Reinforcement.
- Evaporator foundation. Sections 1-1, 2-2.
The detailed design is created in AutoCAD (DWG) and includes the following drawings:
- LPG tank plant layout plan.
- Gas pipeline routing along the production facility facade. Views A and B.
- Axonometric diagram.
- Tank installation. Plan.
- Tank installation. Sections 1-1, 2-2.
- Gas pipeline and equipment layout. Plan.
- 9.1 m³ LPG tank. Factory-fabricated.
- Foundation and support locations. Plan.
- Tank farm fencing. Plan. View A.
- Tank foundation. Reinforcement.
- Evaporator foundation. Sections 1-1, 2-2.
Main features
- Content type File
- Content description 1949,3 kB
- Updated on the site 25.11.2013
