Program activation code Ampflier JFET
Uploaded: 10.02.2025
Content: Code_activation_ Amp_JFET_ 11_02_25 to 11_04_25.rar 0,13 kB
ElectronicsLab
seller information
Seller will give you a gift certificate in the amount of
Product description
The program is intended for calculating amplifier stages on a field-effect transistor with a control p-n junction. You select the cascade circuit, then select the transistor model from the program database, the program performs the calculation of the amplifier. The program database contains about 1000 models of transistors of foreign and domestic production. The program provides the ability to display detailed calculations of the amplifier with a report in Word format.
Additional information
Selecting a calculation scheme: with a common drain, a common source.
The program does:

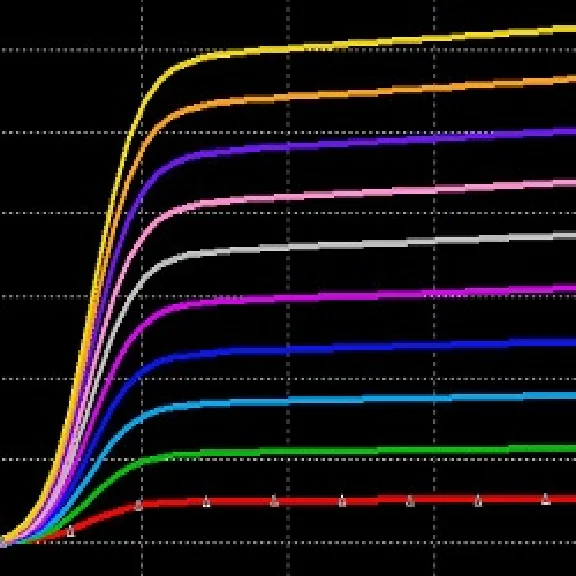

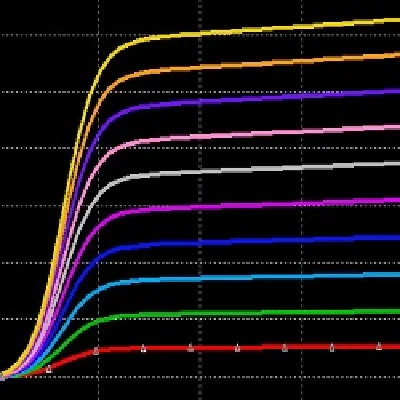

-Calculation of the current-voltage characteristics of the field-effect transistor of the selected model;
-Selection of the amplifier operating point;
-Construction of a load line;
-Calculation of amplifier frequency characteristics;
-Calculation of basic parameters.
