Product description

RC elements PS RC elements PS RC elements PS RC elements PS

Archive AutoCAD elements designed for the expert design of building sections (AU QL) power plants, substations and their parts (GLP, Substation, switchyard, distribution centers, etc.).

Created by:
1. A series 3.407-102 "Unified concrete elements 35-500 kV substations" - SPM pile foundation UX-1 Mo-2 plate, beam BC, stove NSP, NSP plate, sill LV tray UBC-1A foundation F- II, the USO desk, stove UBC-5,5a, sleeper RC foundation F.
2. Series 3.407.1-157 "Unified concrete products 35-500 kV substations" - SCP Front, Traverse TJ, stand the sun, stand CPA, the foundation of F 8.8, sill 2LZH, PCS-12 tie, the tie PCS-27 block BDL 40.6, timber B5-10, plate II, CH pile tray L.

RC elements are created in the following forms:
Objects AutoCAD DWG 3D
! Visualization designed objects.

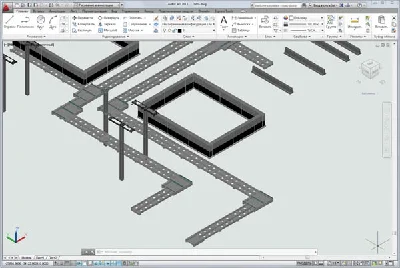

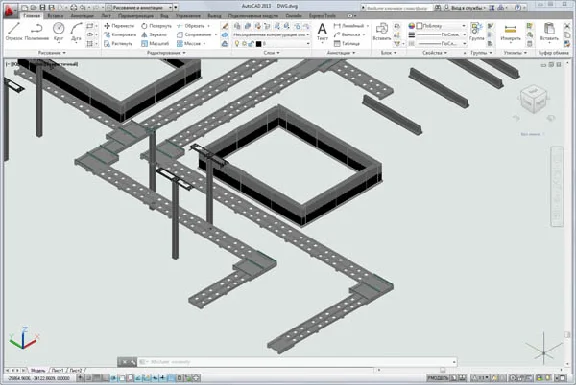

Plan 110/10 kV
! Audit of design and working documents.
Reception CT1
! As accurate as possible a bill of materials.

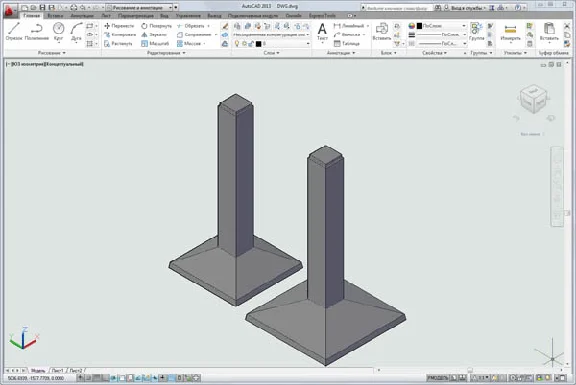

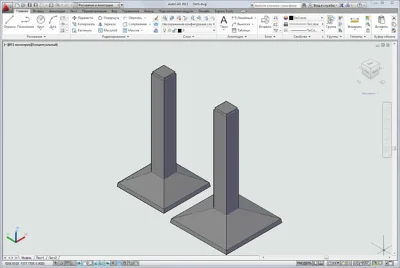

Foundation F
A few more screenshots: CH pile tray A block BDL, the foundation of the UX-1.

Blocks AutoCAD DWG Dynamics Blocks (Dynamic Blocks)
! All the units are assembled in the tool palette.

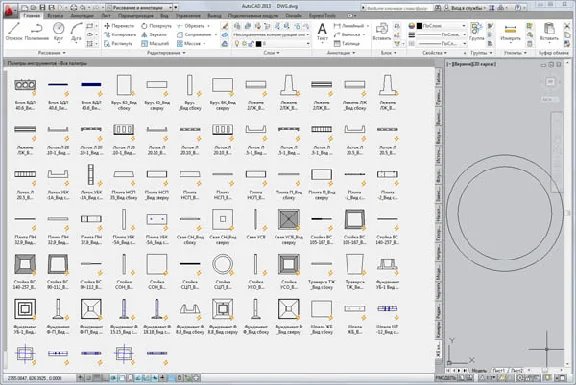

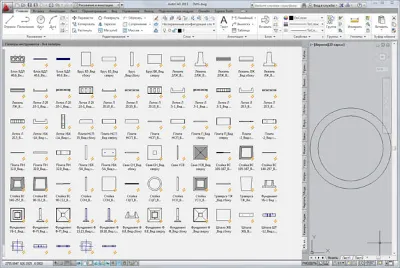

Tool Palette RC elements
! Modern, high-speed design techniques.
Foundation F 8.8 - Dynamic turn
! All sizes of RC products in the same block.

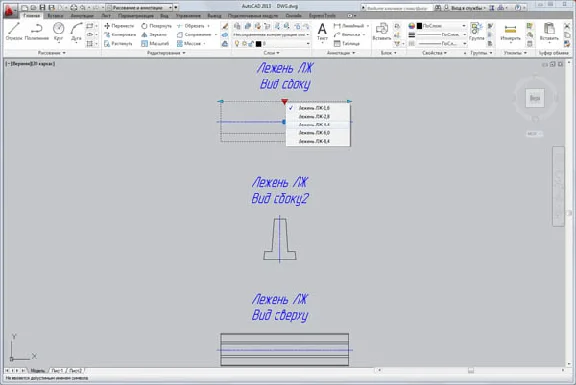

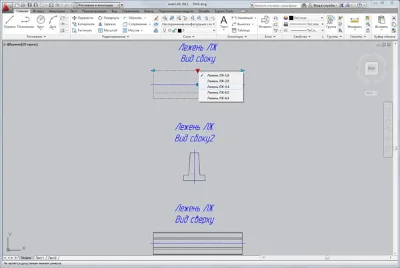

Change the size - Lejeune LV

AutoCAD DWG 2D Drawings
! Typical Design for HD stations and substations.
! For all versions of AutoCAD, starting with AutoCAD 2004.
! Create your own tool palettes group dynamic blocks.
All RC products

Sketches of AutoCAD DWG for 3D
! For all versions of AutoCAD, starting with AutoCAD 2004.
! Quickly create your own 3D objects.
! Reduction of computer resources in the construction of complex objects.
Design 3D - PT Foundation

Total structure of the archive:
1. Objects AutoCAD 2010 DWG 3D - 24 pcs.
2. Blocks AutoCAD 2010 DWG Dynamics Blocks - 24 Pieces.
3. Drawings AutoCAD 2010 DWG 2D - 24 pcs.
4. Drawings AutoCAD 2004 DWG 2D - 24 pcs.
5. Sketches of AutoCAD 2010 DWG for 3D - 24 pcs.
6. Sketches of AutoCAD 2004 DWG for 3D - 24 pcs.
7. File tool palette AutoCAD 2010 DWG - 1 pc.


No feedback yet.
