Roads symbols

Collection conditional graphical symbols and simplified the image used in the drawing of roads for various purposes.
Category of ACS: Graphical symbols for use on mechanical engineering and construction drawings, diagrams, plans, maps and in relevant technical product documentation.

Created by: GOST R 21.1207-97 "System of design documents for construction. Conventional graphic symbols in the drawing of roads. "

TAGs: Road design, design of streets.

Format - DWG.
92 elements.
100% in accordance with GOST.

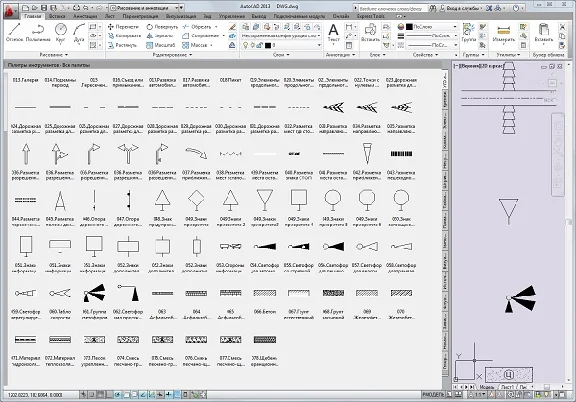

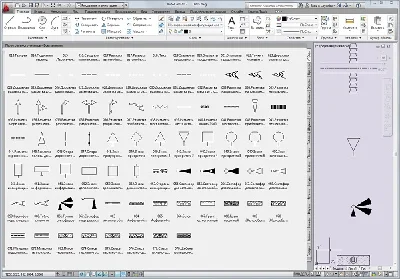

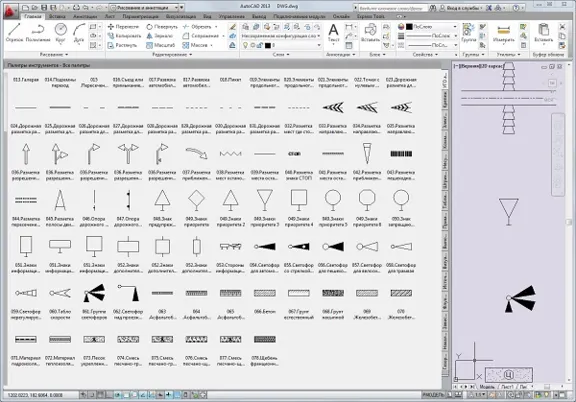

Elements for easy tool palette assembled in blocks of AutoCAD 2010.

The archive also contains the halyards, made as a standard drawing format, DWG, compatible with AutoCAD 2000-2016, Compass, ZWCAD, nanoCAD, BricsCAD etc.
