Product description

Collection conditional graphical symbols for newly developed and modernized technical security, monitoring and access control, CCTV.
Category of ACS: Design, construction, installation, and technical and organizational support for the operation of safety systems of objects (SBO).

1. ASB fire equipment
GOST 28130-89 "Fire trucks. Fire extinguishers, fire extinguishing and fire alarm systems. Graphical symbols. "

2. ASB fire trucks
GOST 12.1.114-82 "Occupational safety standards system. Fire trucks. Graphical symbols. "

3. ASB CCTV systems
Collection of conditional graphic designations for expert system design, video surveillance and CCTV. Expanded use - design of CCTV.

4. ASB access control systems
Created on the basis of catalogs western manufacturers of safety equipment.

5. ASB security equipment
RD 78.36.002-2010 "Recommendations. Technical means of security systems projects. Graphical symbols elements of technical security, monitoring and access control, CCTV. "

Format - DWG.
5 regulations.
361 element.
100% in accordance with GOST.

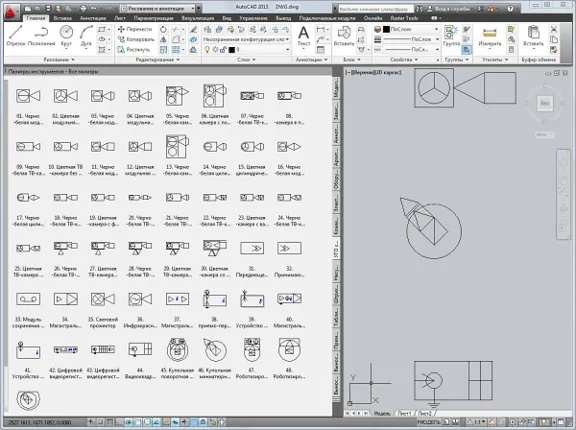

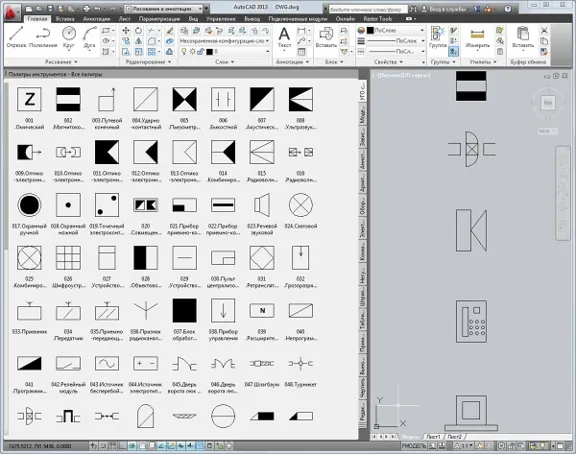

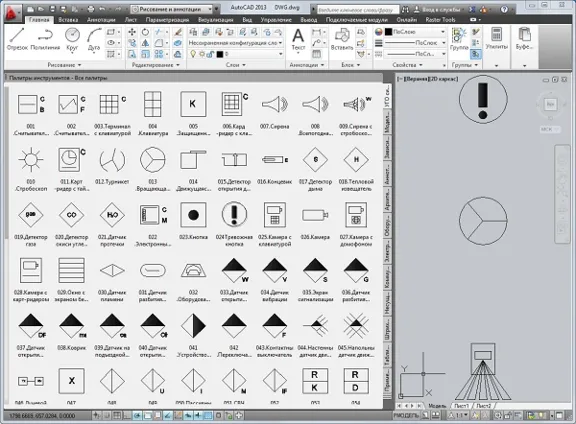

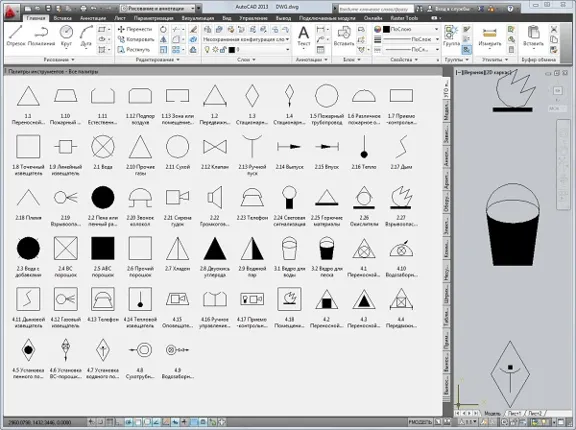

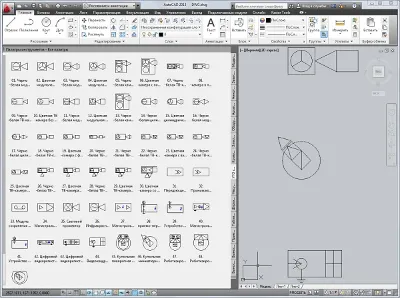

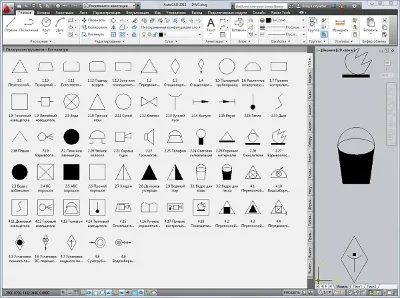

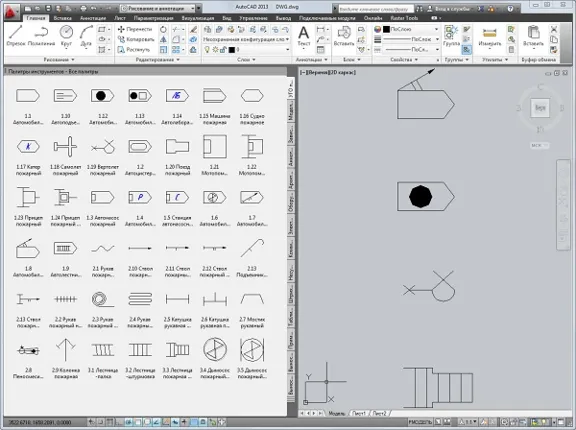

Elements for easy tool palette assembled in blocks of AutoCAD 2010.

The archive also contains the halyards, made as a standard drawing format, DWG, compatible with AutoCAD 2000-2016, Compass, ZWCAD, nanoCAD, BricsCAD etc.

Main features

  • Content type File
  • Content description 1443,77 kB
  • Added to the site 08.12.2015
